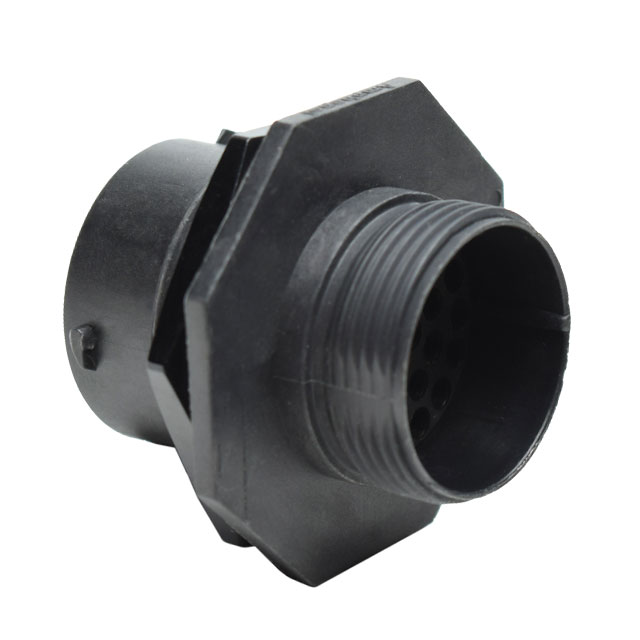

RTS716N26S03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 26POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
RTS716N26S03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 26POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS716N26S03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Includes | 1 O-Ring, 1 Gasket, 1 Nut, 1 Connector |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 26 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert [Max] | 26 |
| Shell Size - Insert [Min] | 16 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.28 | |
| 10 | $ 16.71 | |||
| 25 | $ 15.84 | |||
| 50 | $ 15.61 | |||
| 100 | $ 13.77 | |||
| 300 | $ 12.85 | |||
| 600 | $ 12.58 | |||
Description
General part information
RTS716 Series
26 Position Circular Connector Receptacle Housing Panel Mount
