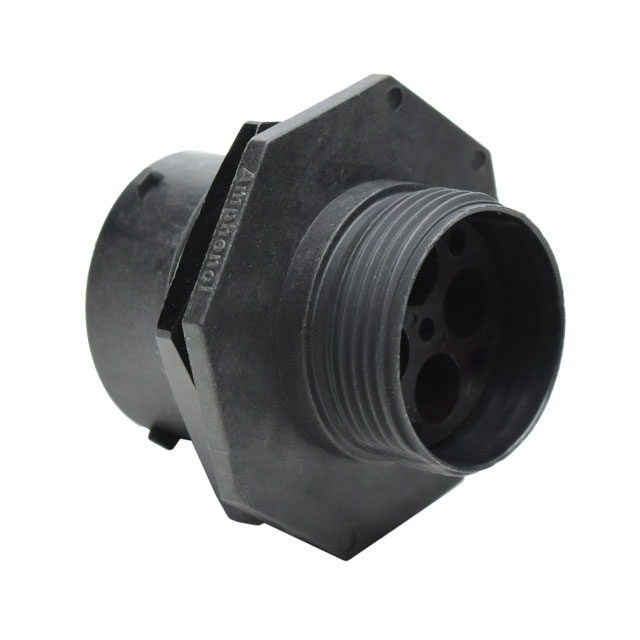

RTS716N4S03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 4POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet +1

RTS716N4S03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 4POS PNL MNT

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS716N4S03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	8
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 O-Ring, 1 Gasket, 1 Nut, 1 Connector
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	16-4
Shielding	Unshielded
Type	For Female Sockets

RTS716 Series

Part	Note	Orientation	Contact Shape	Type	Material Flammability Rating	Connector Type	Housing Color	Mounting Feature	Includes	Insert Material	Contact Type	Ingress Protection	Fastening Type	Shell Size - Insert	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shielding	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Sine Systems Corp RTS716N4S03	Contacts Not Included	N	Circular	For Female Sockets	UL94 V-0	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Connector 1 Gasket 1 Nut 1 O-Ring	Thermoplastic	Crimp	IP67 IP69K	Bayonet Lock	16-4	8	125 °C	-40 °C	4	Unshielded
Amphenol Sine Systems Corp RTS716N09P03	Contacts Not Included	N	Circular	For Male Pins	UL94 V-0	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Connector 1 Gasket 1 Nut 1 O-Ring	Thermoplastic	Crimp	IP67 IP69K	Bayonet Lock		2.5 mm 16	125 °C	-40 °C	9	Unshielded
Amphenol Sine Systems Corp RTS716N4PHEC03	Contacts Not Included	N	Circular	For Male Pins	UL94 V-0	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	Thermoplastic	Crimp	IP67 IP69K	Bayonet Lock	16-4	8	125 °C	-40 °C	4	Unshielded	Backshell
Amphenol Sine Systems Corp RTS716N26P03	Contacts Not Included	N	Circular	For Male Pins	UL94 V-0	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Connector 1 Gasket 1 Nut 1 O-Ring	Thermoplastic	Crimp	IP67 IP69K	Bayonet Lock		20	125 °C	-40 °C	26	Unshielded		16	26
Amphenol Sine Systems Corp RTS716N09S03	Contacts Not Included	N	Circular	For Female Sockets	UL94 V-0	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Connector 1 Gasket 1 Nut 1 O-Ring	Thermoplastic	Crimp	IP67 IP69K	Bayonet Lock		2.5 mm 16	125 °C	-40 °C	9	Unshielded
Amphenol Sine Systems Corp RTS716N4P03	Contacts Not Included	N	Circular	For Male Pins	UL94 V-0	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Connector 1 Gasket 1 Nut 1 O-Ring	Thermoplastic	Crimp	IP67 IP69K	Bayonet Lock	16-4	8	125 °C	-40 °C	4	Unshielded
Amphenol Sine Systems Corp RTS716N26S03	Contacts Not Included	N	Circular	For Female Sockets	UL94 V-0	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Connector 1 Gasket 1 Nut 1 O-Ring	Thermoplastic	Crimp	IP67 IP69K	Bayonet Lock		20	125 °C	-40 °C	26	Unshielded		16	26
Amphenol Sine Systems Corp RTS716N26PHEC03	Contacts Not Included	N	Circular	For Male Pins	UL94 V-0	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	Thermoplastic	Crimp	IP67 IP69K	Bayonet Lock		20	125 °C	-40 °C	26	Unshielded	Backshell	16	26
Amphenol Sine Systems Corp RTS716N19PHEC03	Contacts Not Included	N	Circular	For Male Pins	UL94 V-0	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	Thermoplastic	Crimp	IP67 IP69K	Bayonet Lock		16	125 °C	-40 °C	19	Unshielded	Backshell	16	19

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.84
		10	$ 10.64
		25	$ 9.62
		50	$ 8.94
		100	$ 8.31
		250	$ 7.69

Description

General part information

RTS716 Series

4 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

Eco|mate® Aquarius™ Flyer

Datasheet
