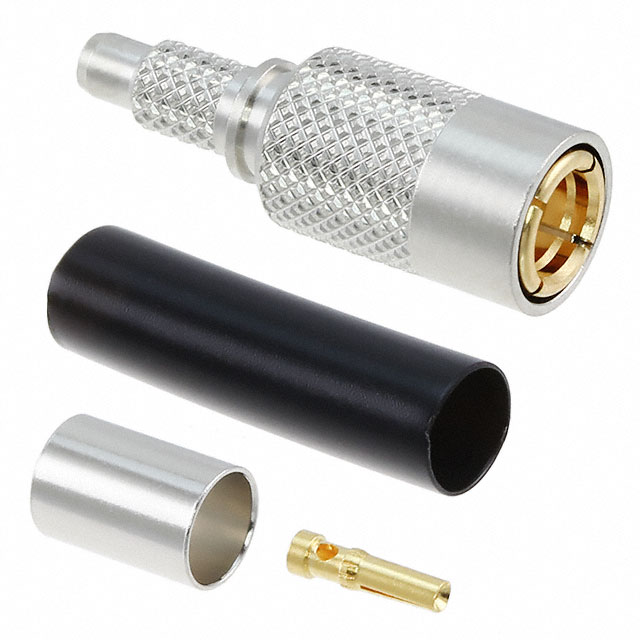

UM-QP-1.5VCR3A(41)
ActiveHirose Electric USA, Inc.
SMALL PUSH ON LOCK, MICRO COAXIAL CONNECTORS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM-QP-1.5VCR3A(41)
ActiveHirose Electric USA, Inc.
SMALL PUSH ON LOCK, MICRO COAXIAL CONNECTORS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM-QP-1.5VCR3A(41) |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | 1.5D-2V, 1.5D-HQEV, 1.5D-QEV |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | U.FL (UMCC) |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 3 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 Heat Shrink, 2 pcs - 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UM-QP-1.5 Series
U.FL (UMCC) Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
