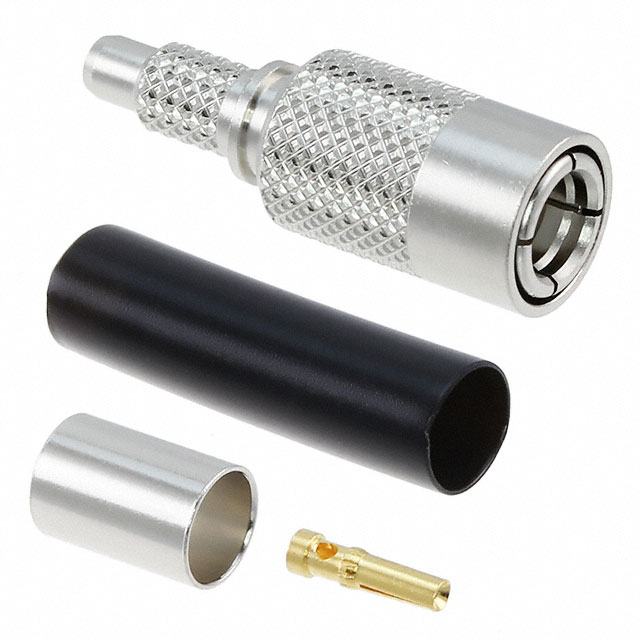

UM-QP-1.5VCR3A(40)
ActiveHirose Electric USA, Inc.
CONN UMC PLUG STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM-QP-1.5VCR3A(40)
ActiveHirose Electric USA, Inc.
CONN UMC PLUG STR 50OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM-QP-1.5VCR3A(40) |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 1.5D-2V, 1.5D-HQEV, 1.5D-QEV |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | U.FL (UMCC) |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 3 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Heat Shrink, 2 pcs - 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.39 | |
| 20 | $ 6.68 | |||
| 40 | $ 6.16 | |||
| 100 | $ 5.85 | |||
| 260 | $ 5.24 | |||
| 500 | $ 4.93 | |||
| 1000 | $ 4.31 | |||
Description
General part information
UM-QP-1.5 Series
U.FL (UMCC) Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
