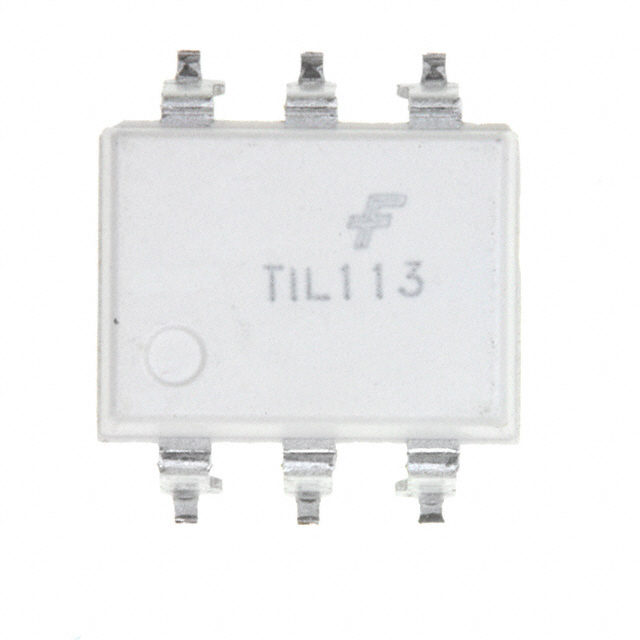

TIL113SM

Active

ON Semiconductor

DARLINGTON-NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,SO

Search across all available documentation for this part.

Active

ON Semiconductor

DARLINGTON-NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,SO

Technical Specifications

Parameters and characteristics for this part

Specification	TIL113SM

Current - DC Forward (If) (Max) [Max]	80 mA
Current - Output / Channel	150 mA
Current Transfer Ratio (Min) [Min]	300 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Darlington with Base
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
Turn On / Turn Off Time (Typ)	5 µs
Turn On / Turn Off Time (Typ) [Max]	100 µs
Vce Saturation (Max) [Max]	1.25 V
Voltage - Isolation	4170 Vrms
Voltage - Output (Max) [Max]	30 V

6-pin DIP Photodarlington Output Optocoupler

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Current Transfer Ratio (Min) [Min]	Mounting Type	Turn On / Turn Off Time (Typ)	Turn On / Turn Off Time (Typ) [Max]	Supplier Device Package	Number of Channels	Current - DC Forward (If) (Max) [Max]	Vce Saturation (Max) [Max]	Current - Output / Channel	Voltage - Output (Max) [Max]	Input Type	Package / Case	Voltage - Isolation	Package / Case	Package / Case
ON Semiconductor TIL113SM	100 °C	-40 °C	Darlington with Base	300 %	Surface Mount	5 µs	100 µs	6-SMD	1	80 mA	1.25 V	150 mA	30 V	DC	6-SMD Gull Wing	4170 Vrms
ON Semiconductor TIL113SD	100 °C	-55 °C	Darlington with Base	300 %	Surface Mount	55 µs 350 ns		6-SMD	1	100 mA	1.25 V		30 V	DC	6-SMD Gull Wing	5300 Vrms
ON Semiconductor TIL1133SD	100 °C	-55 °C	Darlington with Base	300 %	Surface Mount	55 µs 350 ns		6-SMD	1	100 mA	1.25 V		30 V	DC	6-SMD Gull Wing	5300 Vrms
ON Semiconductor TIL113300W	100 °C	-55 °C	Darlington with Base	300 %	Through Hole	55 µs 350 ns		6-DIP	1	100 mA	1.25 V		30 V	DC	6-DIP	5300 Vrms	10.16 mm	10.16 mm
ON Semiconductor TIL113W	100 °C	-55 °C	Darlington with Base	300 %	Through Hole	55 µs 350 ns		6-DIP	1	100 mA	1.25 V		30 V	DC	6-DIP	5300 Vrms	10.16 mm	10.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The 4N29M, 4N30M, 4N32M, 4N33M, H11B1M and TIL113M have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.
