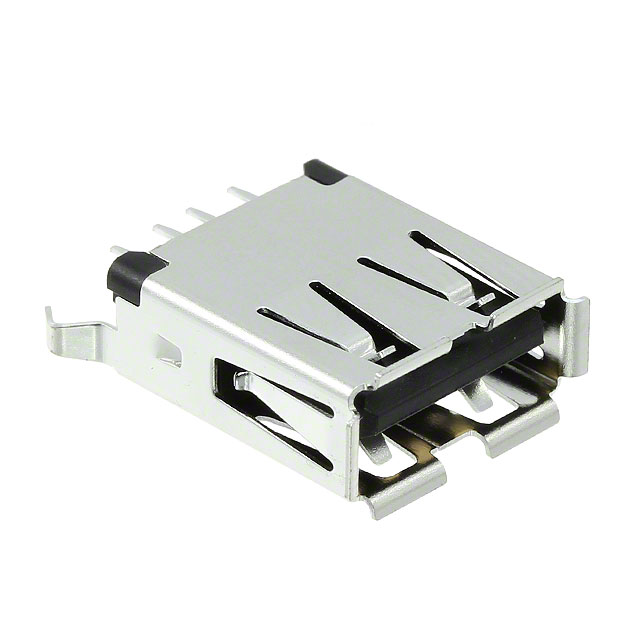

XM7A-0441
ActiveOmron Electronics Inc-EMC Div
CONN RCPT USB2.0 TYPEA 4POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
XM7A-0441
ActiveOmron Electronics Inc-EMC Div
CONN RCPT USB2.0 TYPEA 4POS VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XM7A-0441 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 1500 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Unshielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.73 | |
| 10 | $ 1.50 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.41 | |||
| 120 | $ 1.34 | |||
| 360 | $ 1.21 | |||
| 600 | $ 1.13 | |||
Description
General part information
XM7A Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole
