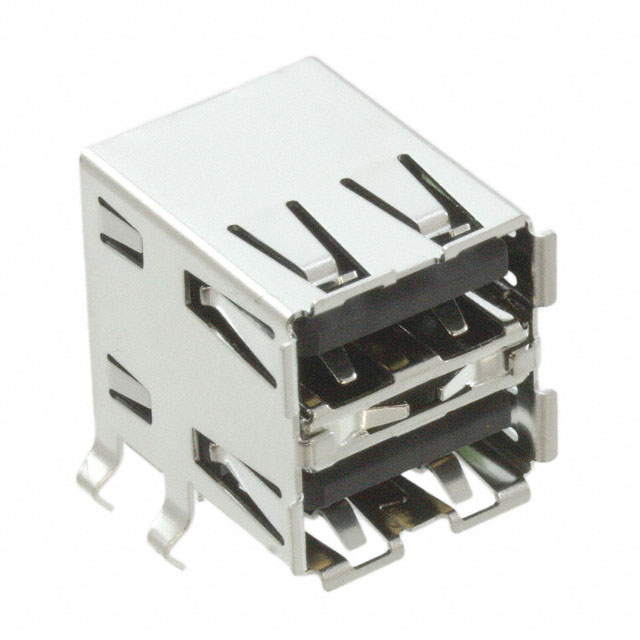

XM7A-0442A
ActiveOmron Electronics Inc-EMC Div
CONN RCPT USB2.0 TYPEA STACK R/A
Deep-Dive with AI
Search across all available documentation for this part.
XM7A-0442A
ActiveOmron Electronics Inc-EMC Div
CONN RCPT USB2.0 TYPEA STACK R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XM7A-0442A |
|---|---|
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts | 8 |
| Number of Ports | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Unshielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.25 | |
| 10 | $ 2.95 | |||
| 25 | $ 2.80 | |||
| 50 | $ 2.73 | |||
| 120 | $ 2.60 | |||
| 360 | $ 2.28 | |||
| 600 | $ 2.21 | |||
| 1080 | $ 1.89 | |||
| 2520 | $ 1.76 | |||
Description
General part information
XM7A Series
USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 8 Position Through Hole, Right Angle
