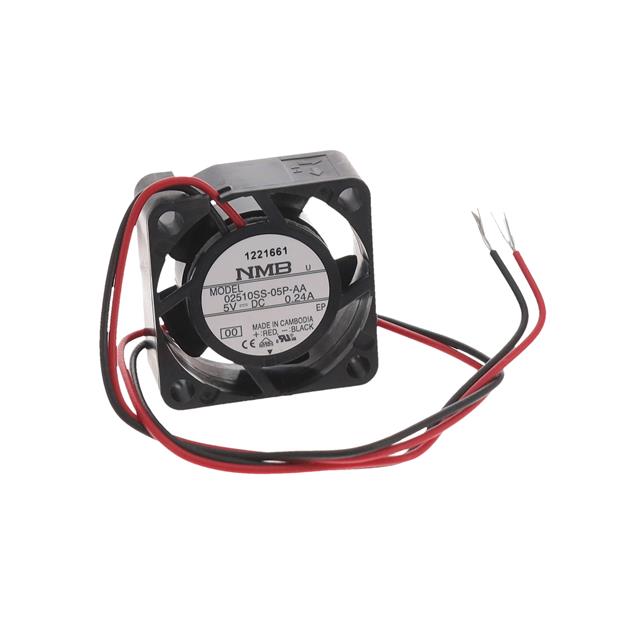

02510SS-05P-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 25 MM, 10 MM, SLEEVE BEARING, 2.65 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

02510SS-05P-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 25 MM, 10 MM, SLEEVE BEARING, 2.65 CFM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	02510SS-05P-AA-00

Air Flow	0.076 m³/min
Air Flow	2.7 CFM
Bearing Type	Sleeve
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.9 W
RPM	13000 RPM
Size / Dimension [x]	25 mm
Size / Dimension [z]	25 mm
Static Pressure	67.3 Pa
Static Pressure	0.27 in H2O
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Width [y]	10 mm

02510SS Series

Part	Features	Voltage - Rated	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Fan Type	Static Pressure	Static Pressure	Width [y]	Power (Watts)	Material - Frame	RPM	Bearing Type	Current Rating (Amps)	Lifetime @ Temp.	Termination	Weight	Weight
NMB TECHNOLOGIES 02510SS-12P-AA-00	Auto Restart	12 VDC	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	0.076 m³/min	2.7 CFM	13.8 VDC	6 VDC	Plastic	Tubeaxial	67.3 Pa	0.27 in H2O	10 mm	840 mW	Plastic	13000 RPM	Sleeve	70 mA	30000 Hrs	2 Wire Leads
NMB TECHNOLOGIES 02510SS-12M-AA-00	Auto Restart	12 VDC	25 mm	25 mm									Plastic	Tubeaxial			10 mm		Plastic		Sleeve			2 Wire Leads
NMB TECHNOLOGIES 02510SS-05P-AT-00	Speed Sensor (Tach)	5 V	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	0.073 mł/min	2.6 CFM	5.5 V	4.5 V	Plastic	Tubeaxial	67.3 Pa	0.27 in H2O	10 mm	0.9 W	Plastic	13000 RPM	Sleeve	0.18 A		3 Wire Leads	0.018 lb	8.16 g
NMB TECHNOLOGIES 02510SS-12P-AT-00	Speed Sensor (Tach)	12 VDC	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	0.073 mł/min	2.6 CFM	13.8 VDC	6 VDC	Plastic	Tubeaxial	67.3 Pa	0.27 in H2O	10 mm	840 mW	Plastic	13000 RPM	Sleeve	70 mA		3 Wire Leads	0.018 lb	8.16 g
NMB TECHNOLOGIES 02510SS-05M-AT-00	Auto Restart Speed Sensor (Tach)	5 V	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C					Plastic	Tubeaxial			10 mm		Plastic		Sleeve		30000 Hrs	3 Wire Leads
NMB TECHNOLOGIES 02510SS-05P-AA-00	Auto Restart	5 V	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	0.076 m³/min	2.7 CFM	5.5 V	4.5 V	Plastic	Tubeaxial	67.3 Pa	0.27 in H2O	10 mm	0.9 W	Plastic	13000 RPM	Sleeve	0.18 A	30000 Hrs	2 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.05
		10	$ 8.64
		25	$ 8.12
		50	$ 7.81
		100	$ 7.20
		250	$ 6.73
		500	$ 6.63
Newark	Each	1	$ 10.34
		1080	$ 9.42
		1980	$ 9.24
		2520	$ 9.08
		5040	$ 8.92
		10080	$ 8.61

Description

General part information

02510SS Series

Fan Tubeaxial 5VDC Square - 25mm L x 25mm H Sleeve 2.7 CFM (0.076m³/min) 2 Wire Leads
