Technical Specifications
Parameters and characteristics for this part

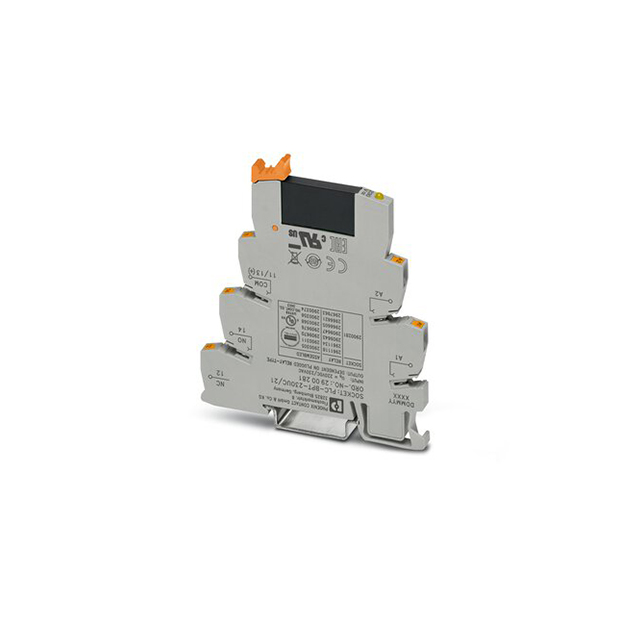

| Specification | 2900368 |
|---|---|
| Approval Agency | DNV, UKCA, CE |
| Load Current | 3 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Spring Terminal |
| Voltage - Input | 230 VAC |
| Voltage - Load [Max] | 33 V |
| Voltage - Load [Min] | 3 V |
290036 Series
| Part | Output Type | Package / Case | Mounting Type | Termination Style | Voltage - Load [Max] | Voltage - Load [Min] | Approval Agency | Voltage - Input | Operating Temperature [Min] | Operating Temperature [Max] | Load Current |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | DC | Module | DIN Rail | Spring Terminal | 33 V | 3 V | CE DNV UKCA | 48 VDC | -25 °C | 60 °C | 3 A |
Phoenix Contact | DC | Module | DIN Rail | Spring Terminal | 33 V | 3 V | CE DNV UKCA | 60 VDC | -25 °C | 60 °C | 3 A |
Phoenix Contact | DC | DIN Rail | Spring Terminal | 6 V | 4.5 V | CE UKCA | 24 V | -25 °C | 60 °C | 50 mA | |
Phoenix Contact | DC | Module | DIN Rail | Spring Terminal | 33 V | 3 V | CE UKCA | 24 V | -25 °C | 60 °C | 20 mA |
Phoenix Contact | DC | Module | DIN Rail | Spring Terminal | 33 V | 3 V | CE DNV UKCA | 24 V | -25 °C | 60 °C | 3 A |
Phoenix Contact | AC | Module | DIN Rail | Spring Terminal | 253 V | 24 V | CE DNV UKCA | 24 V | -25 °C | 60 °C | 0.75 A |
Phoenix Contact | DC | Module | DIN Rail | Spring Terminal | 33 V | 3 V | CE DNV UKCA | 230 VAC | -25 °C | 60 °C | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
290036 Series
Solid State SPST-NO (1 Form A) Module
Documents
Technical documentation and resources
