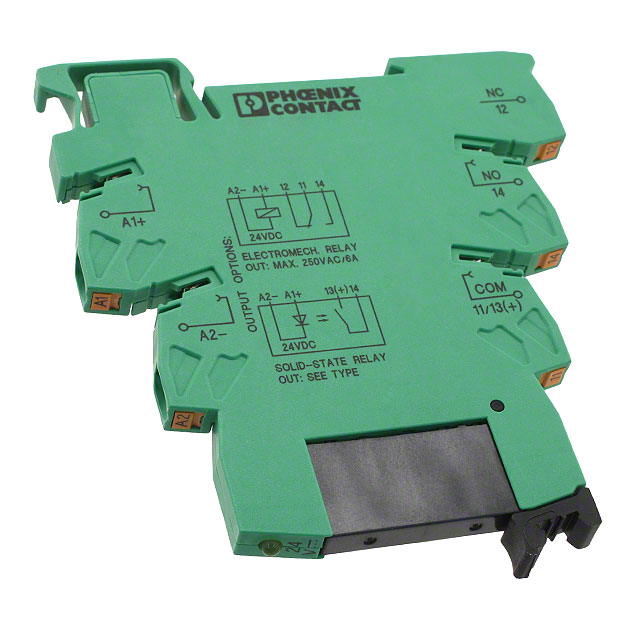

2900365

Active

Phoenix Contact

SSR RELAY SPST-NO 3A 3-33V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 3A 3-33V

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Package / Case	Mounting Type	Termination Style	Voltage - Load [Max]	Voltage - Load [Min]	Approval Agency	Voltage - Input	Operating Temperature [Min]	Operating Temperature [Max]	Load Current
Phoenix Contact 2900365	DC	Module	DIN Rail	Spring Terminal	33 V	3 V	CE DNV UKCA	48 VDC	-25 °C	60 °C	3 A
Phoenix Contact 2900366	DC	Module	DIN Rail	Spring Terminal	33 V	3 V	CE DNV UKCA	60 VDC	-25 °C	60 °C	3 A
Phoenix Contact 2900363	DC		DIN Rail	Spring Terminal	6 V	4.5 V	CE UKCA	24 V	-25 °C	60 °C	50 mA
Phoenix Contact 2900362	DC	Module	DIN Rail	Spring Terminal	33 V	3 V	CE UKCA	24 V	-25 °C	60 °C	20 mA
Phoenix Contact 2900364	DC	Module	DIN Rail	Spring Terminal	33 V	3 V	CE DNV UKCA	24 V	-25 °C	60 °C	3 A
Phoenix Contact 2900369	AC	Module	DIN Rail	Spring Terminal	253 V	24 V	CE DNV UKCA	24 V	-25 °C	60 °C	0.75 A
Phoenix Contact 2900368	DC	Module	DIN Rail	Spring Terminal	33 V	3 V	CE DNV UKCA	230 VAC	-25 °C	60 °C	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.44

General part information

Solid State SPST-NO (1 Form A) Module

Technical documentation and resources
