0191190032

Active

Molex

TERMINALS FLANGED SPADE INSULKRIMP (B-216-10X) SPM

Search across all available documentation for this part.

Active

Molex

TERMINALS FLANGED SPADE INSULKRIMP (B-216-10X) SPM

Technical Specifications

Parameters and characteristics for this part

Specification	0191190032

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	0.175 in
Insulation Diameter [diameter]	4.45 mm
Length - Overall [x]	21.59 mm
Length - Overall [x]	0.85 "
Length - Ring Center to Termination	0.209 in
Length - Ring Center to Termination	5.31 mm
Length - Termination [x]	0.45 in
Length - Termination [x]	11.43 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Flanged
Termination	Crimp
Tongue Inside Opening [x]	5.03 mm
Tongue Inside Opening [x]	0.198 in
Width - Outer Edges [x]	0.301 in
Width - Outer Edges [x]	7.65 mm

Part	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Termination	Mounting Type	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Length - Termination [x]	Length - Termination [x]	Stud/Tab Size	Color	Length - Ring Center to Termination [x]	Length - Ring Center to Termination	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation Diameter	Insulation Diameter [diameter]	Contact Finish	Length - Ring Center to Termination	Insulation Diameter [diameter]
Molex 0191190027
Molex 0191190004	3.71 mm	0.146 in	Crimp	Free Hanging (In-Line)	Flanged	0.836 in	21.23 mm	Copper	0.45 in	11.43 mm	6 Stud	Red	0.207 in	5.26 mm	Insulated	0.301 in	7.65 mm	3.68 mm	0.145 "	Electro-Tin
Molex 0191190080	3.71 mm	0.146 in	Crimp	Free Hanging (In-Line)	Flanged	0.85 "	21.59 mm	Copper	0.45 in	11.43 mm	6 Stud	Blue		5.31 mm	Insulated	0.301 in	7.65 mm		0.175 in	Electro-Tin	0.209 in	4.45 mm
Molex 0191190032	5.03 mm	0.198 in	Crimp	Free Hanging (In-Line)	Flanged	0.85 "	21.59 mm	Copper	0.45 in	11.43 mm	10 Stud	Blue		5.31 mm	Insulated	0.301 in	7.65 mm		0.175 in	Electro-Tin	0.209 in	4.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

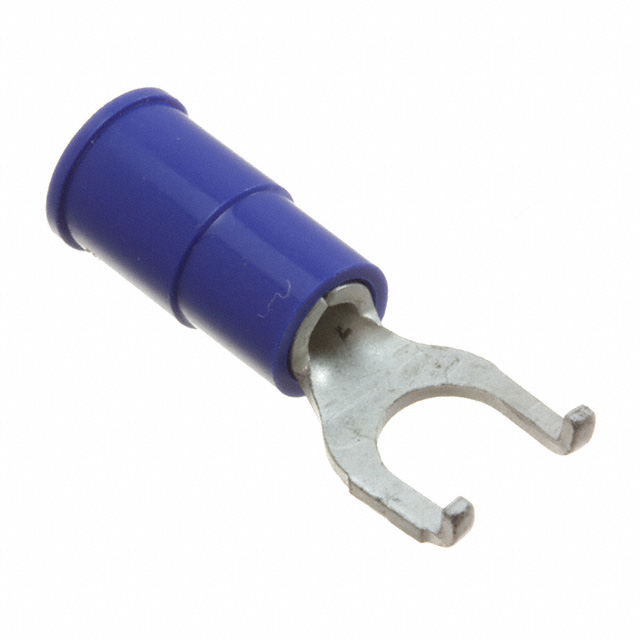

Blue 10 Stud Spade Terminal Connector Crimp
