0191190080

Active

Molex

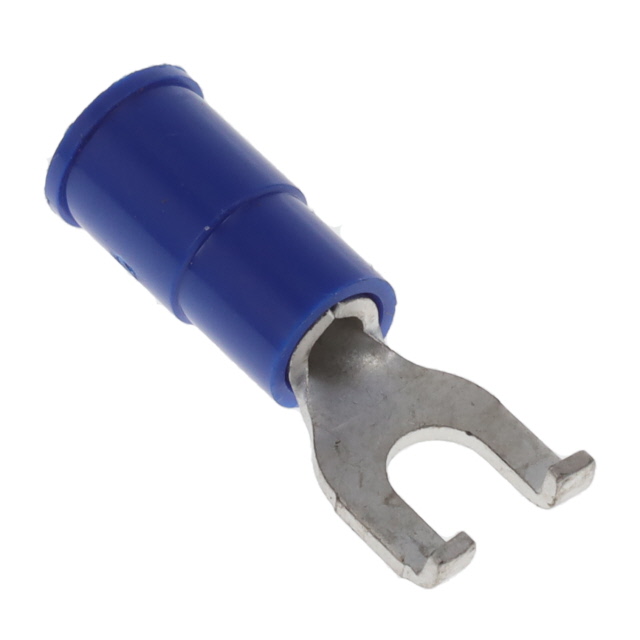

CONN SPADE TERM #6 BLUE

Search across all available documentation for this part.

Active

Molex

CONN SPADE TERM #6 BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	0191190080

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	0.175 in
Insulation Diameter [diameter]	4.45 mm
Length - Overall [x]	21.59 mm
Length - Overall [x]	0.85 "
Length - Ring Center to Termination	0.209 in
Length - Ring Center to Termination	5.31 mm
Length - Termination [x]	0.45 in
Length - Termination [x]	11.43 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Flanged
Termination	Crimp
Tongue Inside Opening [x]	3.71 mm
Tongue Inside Opening [x]	0.146 in
Width - Outer Edges [x]	0.301 in
Width - Outer Edges [x]	7.65 mm

Part	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Termination	Mounting Type	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Length - Termination [x]	Length - Termination [x]	Stud/Tab Size	Color	Length - Ring Center to Termination [x]	Length - Ring Center to Termination	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation Diameter	Insulation Diameter [diameter]	Contact Finish	Length - Ring Center to Termination	Insulation Diameter [diameter]
Molex 0191190027
Molex 0191190004	3.71 mm	0.146 in	Crimp	Free Hanging (In-Line)	Flanged	0.836 in	21.23 mm	Copper	0.45 in	11.43 mm	6 Stud	Red	0.207 in	5.26 mm	Insulated	0.301 in	7.65 mm	3.68 mm	0.145 "	Electro-Tin
Molex 0191190080	3.71 mm	0.146 in	Crimp	Free Hanging (In-Line)	Flanged	0.85 "	21.59 mm	Copper	0.45 in	11.43 mm	6 Stud	Blue		5.31 mm	Insulated	0.301 in	7.65 mm		0.175 in	Electro-Tin	0.209 in	4.45 mm
Molex 0191190032	5.03 mm	0.198 in	Crimp	Free Hanging (In-Line)	Flanged	0.85 "	21.59 mm	Copper	0.45 in	11.43 mm	10 Stud	Blue		5.31 mm	Insulated	0.301 in	7.65 mm		0.175 in	Electro-Tin	0.209 in	4.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 6 Stud Spade Terminal Connector Crimp
