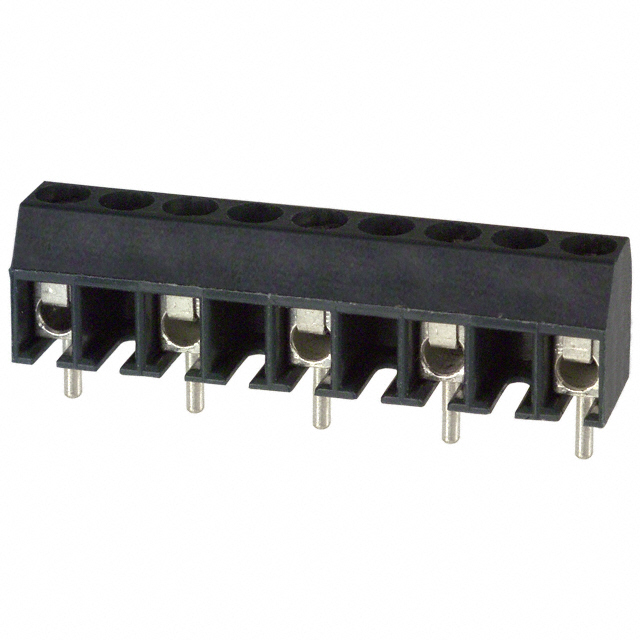

ED655/5DS

Active

On Shore Technology Inc.

TERM BLK 5POS SIDE ENTRY 7MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 5POS SIDE ENTRY 7MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED655/5DS

Clamp Material - Plating	Copper Tin Alloy
Color	Gray
Contact Material - Plating [custom]	Brass
Current	6 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Positions Per Level	5
Screw Thread	M2
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screw

Part	Number of Levels	Screw Thread	Mating Orientation	Color	Clamp Material - Plating	Housing Material	Wire Termination	Contact Material - Plating [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level	Current
On Shore Technology Inc. ED655/7DS	1	M2	Horizontal with Board	Gray	Copper Tin Alloy	Polyamide (PA) Nylon	Screw	Brass	Through Hole	-30 ░C	105 ░C	0.4 Nm	3.5 Lb-In	28 AWG	16 AWG	7	6 A
On Shore Technology Inc. ED655/8DS	1	M2	Horizontal with Board	Gray	Copper Tin Alloy	Polyamide (PA) Nylon	Screw	Brass	Through Hole	-30 ░C	105 ░C	0.4 Nm	3.5 Lb-In	28 AWG	16 AWG	8	6 A
On Shore Technology Inc. ED655/2DS	1	M2	Horizontal with Board	Gray	Copper Tin Alloy	Polyamide (PA) Nylon	Screw	Brass	Through Hole	-30 ░C	105 ░C	0.4 Nm	3.5 Lb-In	28 AWG	16 AWG	2	6 A
On Shore Technology Inc. ED655/5DS	1	M2	Horizontal with Board	Gray	Copper Tin Alloy	Polyamide (PA) Nylon	Screw	Brass	Through Hole	-30 ░C	105 ░C	0.4 Nm	3.5 Lb-In	28 AWG	16 AWG	5	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.28

General part information

5 Position Wire to Board Terminal Block Horizontal with Board 0.276" (7.00mm) Through Hole
