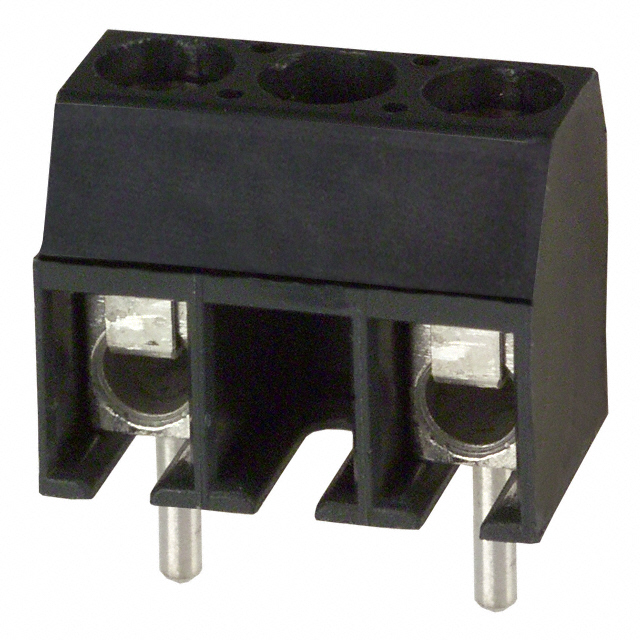

ED655/2DS
ActiveOn Shore Technology Inc.
TERM BLK 2POS SIDE ENTRY 7MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
ED655/2DS
ActiveOn Shore Technology Inc.
TERM BLK 2POS SIDE ENTRY 7MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ED655/2DS |
|---|---|
| Clamp Material - Plating | Copper Tin Alloy |
| Color | Gray |
| Contact Material - Plating [custom] | Brass |
| Current | 6 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Positions Per Level | 2 |
| Screw Thread | M2 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.99 | |
| 10 | $ 0.70 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.42 | |||
| 5000 | $ 0.34 | |||
Description
General part information
ED655 Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.276" (7.00mm) Through Hole
