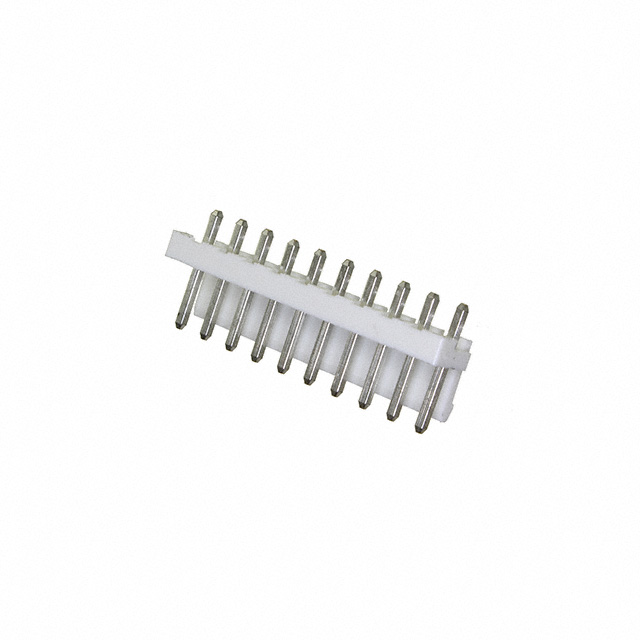

B10P-VH-B

Active

JST Sales America Inc.

CONN HEADER VERT 11POS 3.96MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 11POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	B10P-VH-B

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	10 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.575 in
Overall Contact Length	14.6 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Material	Contact Shape	Style	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Termination	Voltage Rating	Fastening Type	Insulation Color	Number of Positions Loaded	Contact Type	Mounting Type	Connector Type	Material Flammability Rating	Shrouding	Insulation Height	Insulation Height	Number of Rows	Features	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating
JST Sales America Inc. B10P-VH-FB-B	Copper Alloy	Square	Board to Cable/Wire	10	-25 °C	85 °C	Polybutylene Terephthalate (PBT) Glass Filled	0.156 in	3.96 mm	Tin	0.146 in	3.7 mm	10 A	Solder	250 VDC	Locking Ramp	Natural	All	Male Pin	Through Hole	Header	UL94 V-0	Shrouded - 4 Wall	0.433 in	11 mm	1	Board Guide
JST Sales America Inc. B10P-VH	Brass	Square	Board to Cable/Wire	10	-25 °C	85 °C	Polyamide (PA66) Nylon 6/6	0.156 in	3.96 mm	Tin	0.146 in	3.7 mm	10 A	Solder	250 VDC	Locking Ramp	Natural	All	Male Pin	Through Hole	Header	UL94 V-0	Shrouded - 1 Wall	0.37 in	9.4 mm	1		16.5 mm	0.575 in	14.6 mm	7.7 mm	0.303 in
JST Sales America Inc. B10P-VH-B	Brass	Square	Board to Cable/Wire	10	-25 °C	85 °C	Polybutylene Terephthalate (PBT) Glass Filled	0.156 in	3.96 mm	Tin	0.146 in	3.7 mm	10 A	Solder	250 VDC	Locking Ramp	Natural	All	Male Pin	Through Hole	Header	UL94 V-0	Shrouded - 1 Wall	0.37 in	9.4 mm	1			0.575 in	14.6 mm	7.7 mm	0.303 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 10 position 0.156" (3.96mm)
