B10P-VH
ActiveJST Sales America Inc.

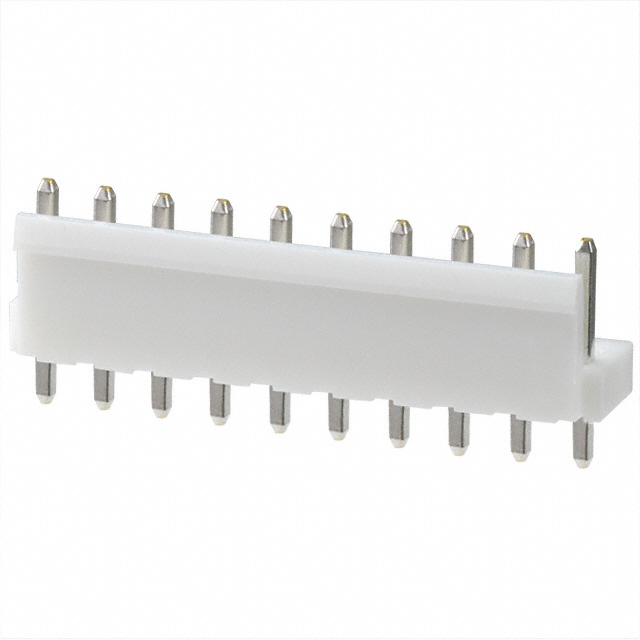

CONN HEADER VERT 10POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
B10P-VH
ActiveJST Sales America Inc.
CONN HEADER VERT 10POS 3.96MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B10P-VH |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 7.7 mm |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 0.146 in |
| Contact Length - Post | 3.7 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 10 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.37 in |
| Insulation Height | 9.4 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights | 16.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overall Contact Length | 0.575 in |
| Overall Contact Length | 14.6 mm |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
B10P-VH Series
| Part | Contact Material | Contact Shape | Style | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Termination | Voltage Rating | Fastening Type | Insulation Color | Number of Positions Loaded | Contact Type | Mounting Type | Connector Type | Material Flammability Rating | Shrouding | Insulation Height | Insulation Height | Number of Rows | Features | Mated Stacking Heights | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Copper Alloy | Square | Board to Cable/Wire | 10 | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) Glass Filled | 0.156 in | 3.96 mm | Tin | 0.146 in | 3.7 mm | 10 A | Solder | 250 VDC | Locking Ramp | Natural | All | Male Pin | Through Hole | Header | UL94 V-0 | Shrouded - 4 Wall | 0.433 in | 11 mm | 1 | Board Guide | |||||
JST Sales America Inc. | Brass | Square | Board to Cable/Wire | 10 | -25 °C | 85 °C | Polyamide (PA66) Nylon 6/6 | 0.156 in | 3.96 mm | Tin | 0.146 in | 3.7 mm | 10 A | Solder | 250 VDC | Locking Ramp | Natural | All | Male Pin | Through Hole | Header | UL94 V-0 | Shrouded - 1 Wall | 0.37 in | 9.4 mm | 1 | 16.5 mm | 0.575 in | 14.6 mm | 7.7 mm | 0.303 in | |
JST Sales America Inc. | Brass | Square | Board to Cable/Wire | 10 | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) Glass Filled | 0.156 in | 3.96 mm | Tin | 0.146 in | 3.7 mm | 10 A | Solder | 250 VDC | Locking Ramp | Natural | All | Male Pin | Through Hole | Header | UL94 V-0 | Shrouded - 1 Wall | 0.37 in | 9.4 mm | 1 | 0.575 in | 14.6 mm | 7.7 mm | 0.303 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.63 | |
| 10 | $ 0.55 | |||
| 200 | $ 0.45 | |||
| 1000 | $ 0.33 | |||
| 5000 | $ 0.29 | |||
| 10000 | $ 0.27 | |||
Description
General part information
B10P-VH Series
Connector Header Through Hole 10 position 0.156" (3.96mm)
