1415146

Active

Phoenix Contact

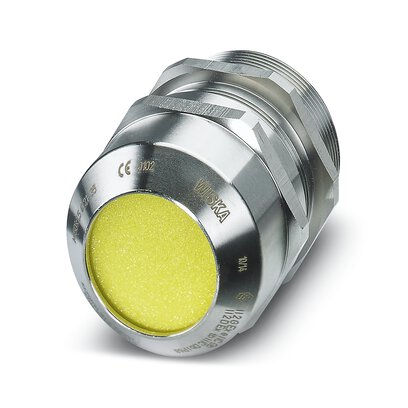

CABLE GLAND 21-35MM M50 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 21-35MM M50 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1415146

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	35 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.378 in
Outside Cable Diameter (Min)	21 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.827 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M50
Type	Cable Gland

Part	Material	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Includes	Color	Operating Temperature [Min]	Operating Temperature [Max]	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)
Phoenix Contact 1415121	Polyamide (PA) Nylon	M50	0.906 in	23 mm	IP66/IP68	Seal	Black Blue	-40 °C	75 ░C	Cable Gland	35 mm	1.378 in	0.709 in	18.01 mm
Phoenix Contact 1415112	Polyamide (PA) Nylon	M50	0.906 in	23 mm	IP66/IP68	Seal	Black	-40 °C	75 ░C	Cable Gland	35 mm	1.378 in	0.709 in	18.01 mm
Phoenix Contact 1415146	Brass Nickel Plated	M50			IP66/IP68	O-Ring Seal	Silver	-40 °C	75 ░C	Cable Gland	35 mm	1.378 in	0.591 in	15 mm	0.827 in	21 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M50 Silver
