1415121

Active

Phoenix Contact

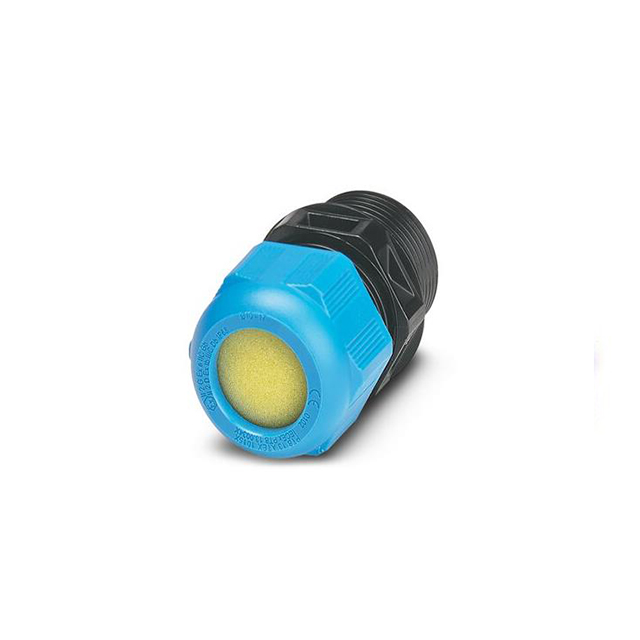

CABLE GLAND 23-35MM M50 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 23-35MM M50 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	1415121

Color	Black, Blue
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	35 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.378 in
Outside Cable Diameter (Min) [Min]	0.906 in
Outside Cable Diameter (Min) [Min]	23 mm
Thread Length	0.709 in
Thread Length	18.01 mm
Thread Size	M50
Type	Cable Gland

Part	Material	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Includes	Color	Operating Temperature [Min]	Operating Temperature [Max]	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)
Phoenix Contact 1415121	Polyamide (PA) Nylon	M50	0.906 in	23 mm	IP66/IP68	Seal	Black Blue	-40 °C	75 ░C	Cable Gland	35 mm	1.378 in	0.709 in	18.01 mm
Phoenix Contact 1415112	Polyamide (PA) Nylon	M50	0.906 in	23 mm	IP66/IP68	Seal	Black	-40 °C	75 ░C	Cable Gland	35 mm	1.378 in	0.709 in	18.01 mm
Phoenix Contact 1415146	Brass Nickel Plated	M50			IP66/IP68	O-Ring Seal	Silver	-40 °C	75 ░C	Cable Gland	35 mm	1.378 in	0.591 in	15 mm	0.827 in	21 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.16

General part information

Cable Gland Polyamide (PA), Nylon M50 Black, Blue
