BU-46A-0

Active

Mueller Electric Co

TEST CLIP, PLIER, BATTERY, 28.6 MM, 50 A, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BU-60 Series Datasheet

BU-46A-0

Active

Mueller Electric Co

TEST CLIP, PLIER, BATTERY, 28.6 MM, 50 A, BLACK

Deep-Dive with AI

DocumentsDatasheet BU-60 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-46A-0

Color	Black
Current Rating (Amps)	50 A
Insulation	Insulated Sleeve
Jaw Opening	1.125 "
Jaw Opening	28.58 mm
Jaw Opening
Length	73.15 mm
Length	2.88 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Plating	Copper
Quantity	1 Box
Termination	Crimp or Solder
Type	Battery Terminal Clamp, Miniature

BU-46 Series

Part	Jaw Opening	Jaw Opening	Type	Termination	Length	Length	Material - Insulation	Insulation	Color	Quantity	Material	Current Rating (Amps)	For Use With/Related Products	Accessory Type	Plating
Mueller Electric Co BU-46M-0	1.125 "	28.58 mm	Battery Terminal Clamp Miniature	Crimp or Solder	73.15 mm	2.88 in	Poly-Vinyl Chloride (PVC)	Insulated Sleeve	Black	1 Box	Copper
Mueller Electric Co BU-46X	1.125 "	28.58 mm	Battery Terminal Clamp Miniature	Crimp or Solder	73.15 mm	2.88 in		Non-Insulated	Natural	1 Box	Stainless Steel	50 A
Mueller Electric Co BU-46C-0	1.125 "	28.58 mm	Battery Terminal Clamp Miniature	Crimp or Solder	73.15 mm	2.88 in	Poly-Vinyl Chloride (PVC)	Insulated Sleeve	Black	1 Box	Copper
Mueller Electric Co BU-46M-2	1.125 "	28.58 mm	Battery Terminal Clamp Miniature	Crimp or Solder	73.15 mm	2.88 in	Poly-Vinyl Chloride (PVC)	Insulated Sleeve	Red	1 Box	Copper
Mueller Electric Co BU-46C-2L	1.125 "	28.58 mm		Crimp or Solder	73.03 mm	2.875 in	Poly-Vinyl Chloride (PVC)	Insulated	Red	1 Box	Copper
Mueller Electric Co BU-46PR-0			Lead Probe Test Clip										Alligator Clips: BU-46 Series	Insulator Black
Mueller Electric Co BU-46A-2	1.125 "	28.58 mm	Battery Terminal Clamp Miniature	Crimp or Solder	73.15 mm	2.88 in	Poly-Vinyl Chloride (PVC)	Insulated Sleeve	Red	1 Box		50 A			Copper
Mueller Electric Co BU-46A-0	1.125 "	28.58 mm	Battery Terminal Clamp Miniature	Crimp or Solder	73.15 mm	2.88 in	Poly-Vinyl Chloride (PVC)	Insulated Sleeve	Black	1 Box		50 A			Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.60
		10	$ 1.31
		100	$ 1.25
		500	$ 1.21
		1000	$ 1.19
Newark	Each	1	$ 1.67
		100	$ 1.56
		500	$ 1.46
		1000	$ 1.34
		2500	$ 1.22

Description

General part information

BU-46 Series

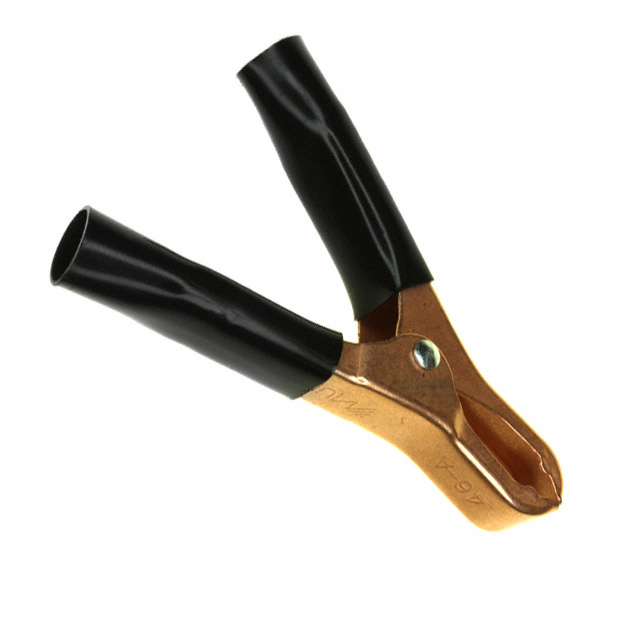

The BU-46A-0 is a Miniature Battery/Plier-type Test Clip made of steel with copper plated finish and black flexible PVC insulators. This test clip can be attached by solder or crimp connection.
