BU-46C-0
ActiveMueller Electric Co

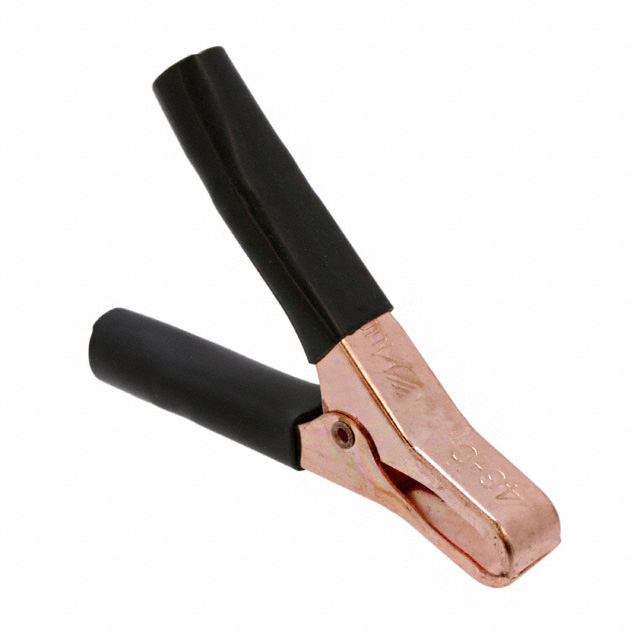

TEST CLIP, BATTERY, PLIER, SOLID COPPER, 28.6 MM, 75 A, BLACK
Deep-Dive with AI
Search across all available documentation for this part.
BU-46C-0
ActiveMueller Electric Co
TEST CLIP, BATTERY, PLIER, SOLID COPPER, 28.6 MM, 75 A, BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-46C-0 |
|---|---|
| Color | Black |
| Insulation | Insulated Sleeve |
| Jaw Opening | 1.125 " |
| Jaw Opening | 28.58 mm |
| Jaw Opening | |
| Length | 73.15 mm |
| Length | 2.88 in |
| Material | Copper |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Quantity | 1 Box |
| Termination | Crimp or Solder |
| Type | Battery Terminal Clamp, Miniature |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-46 Series
BU-46C-0 is a BU-46C series solid copper, miniature battery clip with a pair of flexible PVC insulators. Can connect to wire up to 10AWG via crimp or solder connection.
