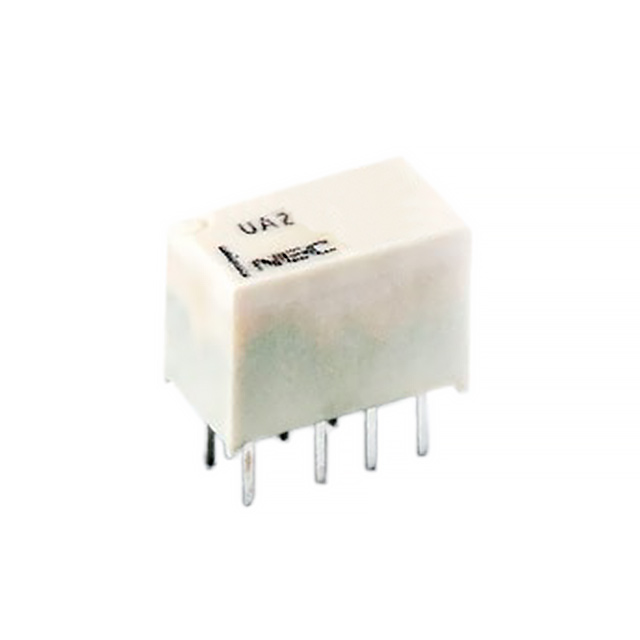

UA2-5NU

Active

KEMET

SIGNAL RELAY, MINIATURE, 5 VDC, DPDT, 1 A, UA2 SERIES, THROUGH HOLE, NON LATCHING

Search across all available documentation for this part.

Active

KEMET

SIGNAL RELAY, MINIATURE, 5 VDC, DPDT, 1 A, UA2 SERIES, THROUGH HOLE, NON LATCHING

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Relay Type	Switching Voltage	Operate Time	Termination Style	Contact Rating (Current)	Mounting Type	Release Time	Coil Current	Contact Form	Coil Type	Must Operate Voltage	Load - Max Switching	Coil Voltage	Coil Resistance	Contact Material
KEMET UA2-5NE	CSA TUV UL	85 °C	-40 °C	0.5 VDC	General Purpose	220 VDC 250 VAC	2 ms	PC Pin	1 A	Through Hole	1 ms	20 mA	DPDT (2 Form C)	Non Latching	3.75 VDC	220 W 250 VA	5 VDC	250 Ohms	Gold Alloy Silver Alloy
KEMET UA2-5NJ	CSA TUV UL	85 °C	-40 °C	0.5 VDC	General Purpose	220 VDC 250 VAC	2 ms	PC Pin	1 A	Through Hole	1 ms	28.1 mA	DPDT (2 Form C)	Non Latching	3.75 VDC	220 W 250 VA	5 VDC	178 Ohms	Gold Alloy Silver Alloy
KEMET UA2-5NU	CSA TUV UL	85 °C	-40 °C	0.5 VDC	General Purpose	220 VDC 250 VAC	2 ms	PC Pin	1 A	Through Hole	1 ms		DPDT (2 Form C)	Non Latching	3.75 VDC	220 W 250 VA	5 VDC	178 Ohms	Gold Alloy Silver Alloy
