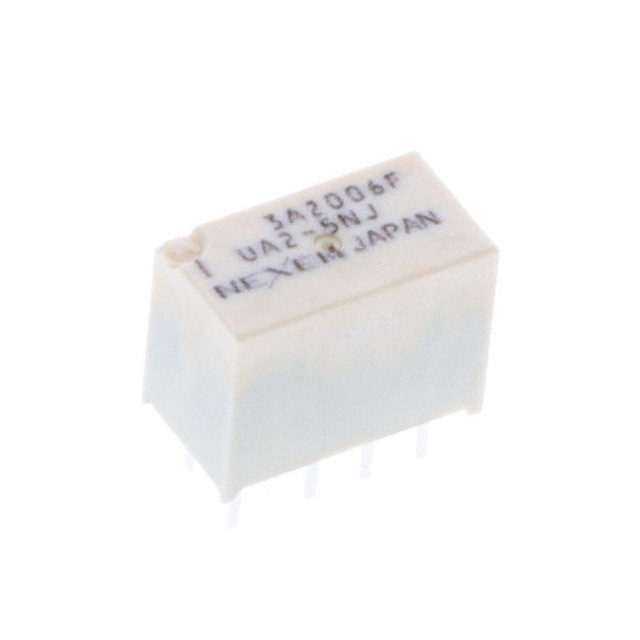

UA2-5NJ

Active

KEMET

SIGNAL RELAY, MINIATURE, 5 VDC, DPDT, 1 A, UA2 SERIES, THROUGH HOLE, NON LATCHING

Search across all available documentation for this part.

Active

KEMET

SIGNAL RELAY, MINIATURE, 5 VDC, DPDT, 1 A, UA2 SERIES, THROUGH HOLE, NON LATCHING

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Relay Type	Switching Voltage	Operate Time	Termination Style	Contact Rating (Current)	Mounting Type	Release Time	Coil Current	Contact Form	Coil Type	Must Operate Voltage	Load - Max Switching	Coil Voltage	Coil Resistance	Contact Material
KEMET UA2-5NE	CSA TUV UL	85 °C	-40 °C	0.5 VDC	General Purpose	220 VDC 250 VAC	2 ms	PC Pin	1 A	Through Hole	1 ms	20 mA	DPDT (2 Form C)	Non Latching	3.75 VDC	220 W 250 VA	5 VDC	250 Ohms	Gold Alloy Silver Alloy
KEMET UA2-5NJ	CSA TUV UL	85 °C	-40 °C	0.5 VDC	General Purpose	220 VDC 250 VAC	2 ms	PC Pin	1 A	Through Hole	1 ms	28.1 mA	DPDT (2 Form C)	Non Latching	3.75 VDC	220 W 250 VA	5 VDC	178 Ohms	Gold Alloy Silver Alloy
KEMET UA2-5NU	CSA TUV UL	85 °C	-40 °C	0.5 VDC	General Purpose	220 VDC 250 VAC	2 ms	PC Pin	1 A	Through Hole	1 ms		DPDT (2 Form C)	Non Latching	3.75 VDC	220 W 250 VA	5 VDC	178 Ohms	Gold Alloy Silver Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) Through Hole
