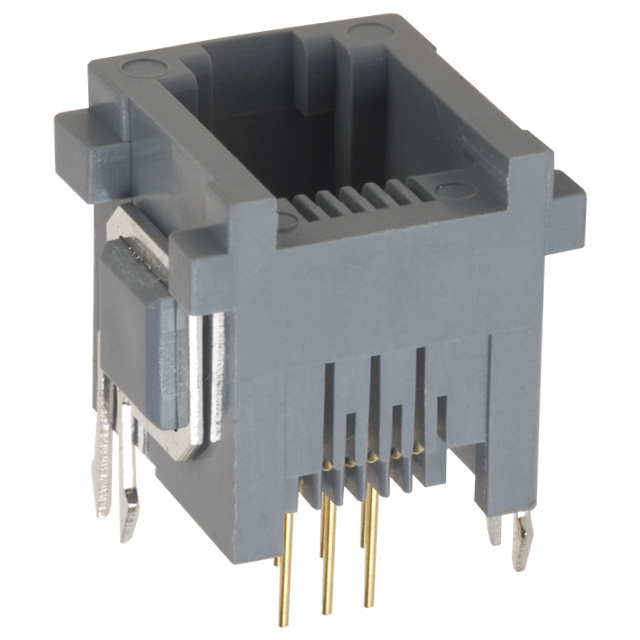

TM2RE-0606(50)

Obsolete

Hirose Electric USA, Inc.

CONN MOD JACK 6P6C VERT UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TM2RE-0606(50)

Obsolete

Hirose Electric USA, Inc.

CONN MOD JACK 6P6C VERT UNSHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TM2RE-0606(50)

Connector Type	Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	Vertical
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

TM2RE Series

Part	Number of Positions/Contacts	Contact Material	Number of Rows	Housing Material	Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish	LED Color	Number of Ports	Tab Direction	Termination	Connector Type	Mounting Type	Orientation	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts
Hirose Electric USA, Inc. TM2REA-1812(50)	6p4c	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	90 °	Board Lock Panel Stops	-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	3	Up	Solder	Jack	Through Hole
Hirose Electric USA, Inc. TM2RE-1208(50)	6p4c	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	2	User Selectable	Solder	Jack	Through Hole	Vertical
Hirose Electric USA, Inc. TM2REAX-2408(50)	4p4c		1		90 °		-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	4	Up	Solder	Jack	Through Hole		50 µin	1.27 µm
Hirose Electric USA, Inc. TM2REA-1806(50)		Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	90 °	Board Lock Panel Stops	-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	3	Up	Solder	Jack	Through Hole				2 6
Hirose Electric USA, Inc. TM2REA-1208(50)	6p4c	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	90 °	Board Lock Panel Stops	-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	2	Up	Solder	Jack	Through Hole
Hirose Electric USA, Inc. TM2RE-2408(50)		Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	4	User Selectable	Solder	Jack	Through Hole	Vertical			2 6
Hirose Electric USA, Inc. TM2RE-2416(50)	6p4c	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	4	User Selectable	Solder	Jack	Through Hole	Vertical
Hirose Electric USA, Inc. TM2REAX-1806(50)		Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	90 ░ Angle	Board Lock Panel Stops	-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	3	Up	Solder	Jack	Through Hole		50 µin	1.27 µm	2 6
Hirose Electric USA, Inc. TM2RE-1212(50)	6p6c (RJ11 RJ12 RJ14 RJ25)	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	2	User Selectable	Solder	Jack	Through Hole	Vertical
Hirose Electric USA, Inc. TM2RE-0606(50)	6p6c (RJ11 RJ12 RJ14 RJ25)	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	1	User Selectable	Solder	Jack	Through Hole	Vertical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TM2RE Series

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Vertical Unshielded
