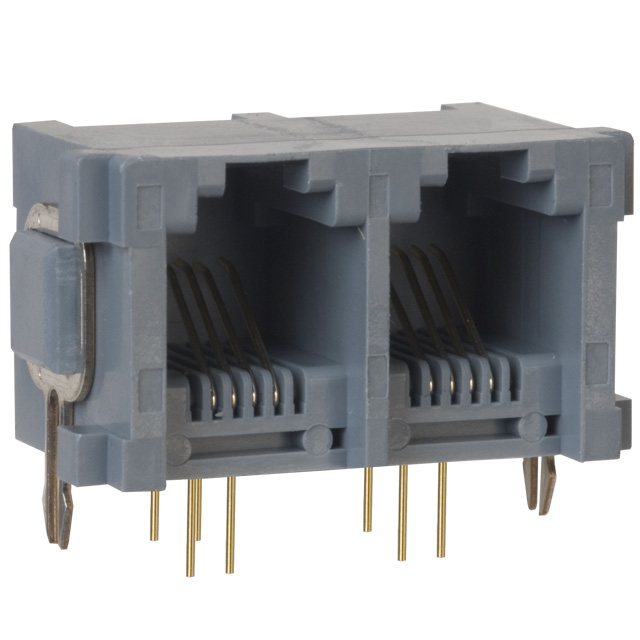

TM2REA-1208(50)

Obsolete

Hirose Electric USA, Inc.

CONN MOD JACK 6P4C R/A UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TM2REA-1208(50)

Obsolete

Hirose Electric USA, Inc.

CONN MOD JACK 6P4C R/A UNSHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TM2REA-1208(50)

Connector Type	Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Features	Board Lock, Panel Stops
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	6p4c
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Up
Termination	Solder

TM2RE Series

Part	Number of Positions/Contacts	Contact Material	Number of Rows	Housing Material	Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish	LED Color	Number of Ports	Tab Direction	Termination	Connector Type	Mounting Type	Orientation	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts
Hirose Electric USA, Inc. TM2REA-1812(50)	6p4c	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	90 °	Board Lock Panel Stops	-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	3	Up	Solder	Jack	Through Hole
Hirose Electric USA, Inc. TM2RE-1208(50)	6p4c	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	2	User Selectable	Solder	Jack	Through Hole	Vertical
Hirose Electric USA, Inc. TM2REAX-2408(50)	4p4c		1		90 °		-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	4	Up	Solder	Jack	Through Hole		50 µin	1.27 µm
Hirose Electric USA, Inc. TM2REA-1806(50)		Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	90 °	Board Lock Panel Stops	-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	3	Up	Solder	Jack	Through Hole				2 6
Hirose Electric USA, Inc. TM2REA-1208(50)	6p4c	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	90 °	Board Lock Panel Stops	-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	2	Up	Solder	Jack	Through Hole
Hirose Electric USA, Inc. TM2RE-2408(50)		Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	4	User Selectable	Solder	Jack	Through Hole	Vertical			2 6
Hirose Electric USA, Inc. TM2RE-2416(50)	6p4c	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	4	User Selectable	Solder	Jack	Through Hole	Vertical
Hirose Electric USA, Inc. TM2REAX-1806(50)		Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	90 ░ Angle	Board Lock Panel Stops	-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	3	Up	Solder	Jack	Through Hole		50 µin	1.27 µm	2 6
Hirose Electric USA, Inc. TM2RE-1212(50)	6p6c (RJ11 RJ12 RJ14 RJ25)	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	2	User Selectable	Solder	Jack	Through Hole	Vertical
Hirose Electric USA, Inc. TM2RE-0606(50)	6p6c (RJ11 RJ12 RJ14 RJ25)	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)			-25 °C	80 C	Unshielded	Gold	Does Not Contain LED	1	User Selectable	Solder	Jack	Through Hole	Vertical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TM2RE Series

Jack Modular Connector 6p4c (RJ11, RJ14) 90° Angle (Right) Unshielded
