DEB05758

Active

Knowles Johanson Manufacturing

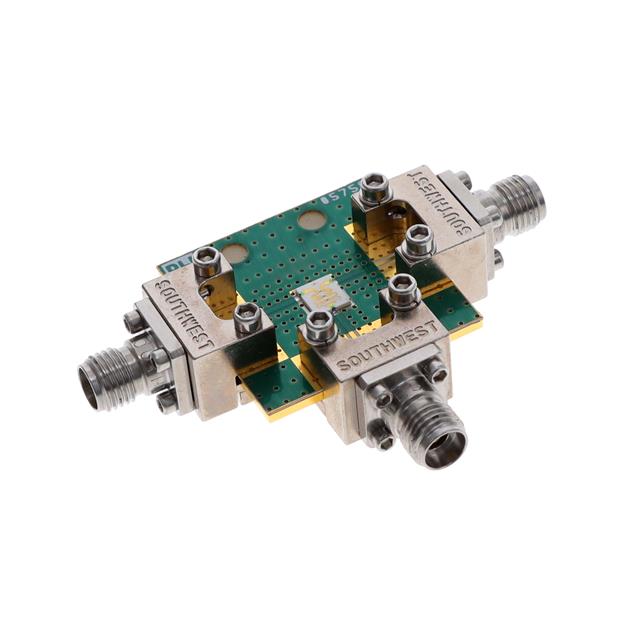

EVAL BOARD FOR PDW05758

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

EVAL BOARD FOR PDW05758

Technical Specifications

Parameters and characteristics for this part

Specification	DEB05758

For Use With/Related Products	PDW05758
Frequency [Max]	18 GHz
Frequency [Min]	6 GHz
Supplied Contents	Board(s)
Type	Power Divider

Part	Frequency [Max]	Frequency [Min]	Insertion Loss	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Specifications	Specifications [Max]	Package / Case	For Use With/Related Products	Supplied Contents	Type
Knowles Johanson Manufacturing PDW05758-T	18 GHz	6 GHz	0.7 dB	0.02 in 0.51 mm	0.16 in 4.06 mm	0.185 in 4.7 mm	20 Positions 20 dB	3 °	SMD
Knowles Johanson Manufacturing DEB05758	18 GHz	6 GHz								PDW05758	Board(s)	Power Divider

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PDW05758 - Power Divider 6GHz ~ 18GHz Evaluation Board

Technical documentation and resources

No documents available
