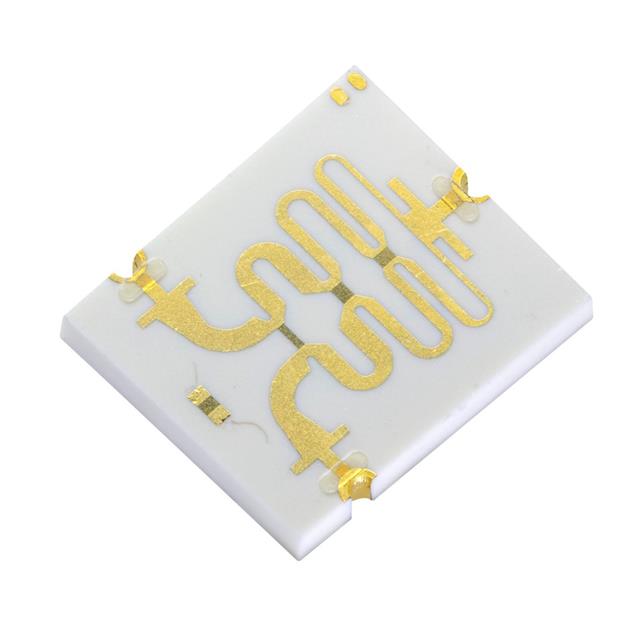

PDW05758-T
ActiveKnowles Johanson Manufacturing
6-18GHZ 2-WAY SMD WILKINSON POWE
Deep-Dive with AI
Search across all available documentation for this part.
PDW05758-T
ActiveKnowles Johanson Manufacturing
6-18GHZ 2-WAY SMD WILKINSON POWE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDW05758-T |
|---|---|
| Frequency [Max] | 18 GHz |
| Frequency [Min] | 6 GHz |
| Insertion Loss | 0.7 dB |
| Package / Case | SMD |
| Size / Dimension [x] | 0.185 in, 4.7 mm |
| Size / Dimension [y] | 0.16 in, 4.06 mm |
| Size / Dimension [z] | 0.02 in, 0.51 mm |
| Specifications | 20 Positions, 20 dB |
| Specifications [Max] | 3 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 49.20 | |
| 10 | $ 40.13 | |||
| 25 | $ 37.00 | |||
| 50 | $ 34.79 | |||
| 100 | $ 33.13 | |||
| Digi-Reel® | 1 | $ 49.20 | ||
| 10 | $ 40.13 | |||
| 25 | $ 37.00 | |||
| 50 | $ 34.79 | |||
| 100 | $ 33.13 | |||
| Tape & Reel (TR) | 2500 | $ 33.13 | ||
Description
General part information
PDW05758 Series
RF Power Divider 6 GHz ~ 18 GHz Isolation (Typ) 20dB, 20dB Return Loss, 3° Imbalance (Max) SMD
Documents
Technical documentation and resources
No documents available
