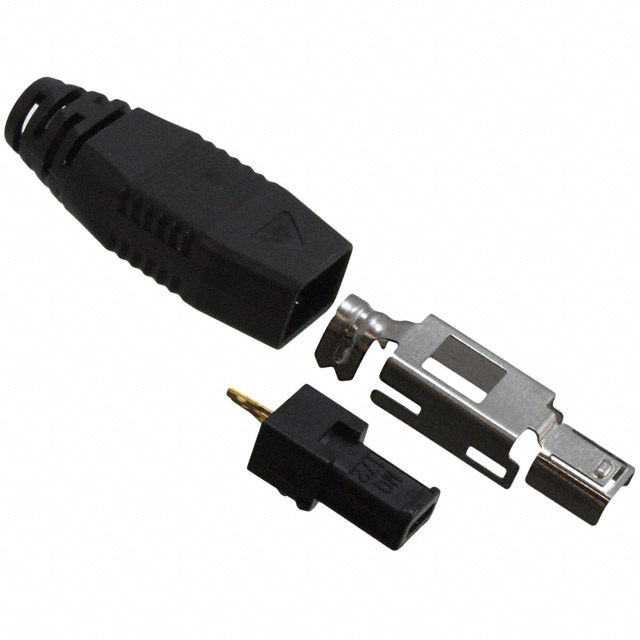

MQ172-3SA-CV

Obsolete

Hirose Electric USA, Inc.

CONN PLUG 3POS SOLDER GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG 3POS SOLDER GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Material Flammability Rating	Voltage Rating	Applications	Contact Material	Connector Type	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Fastening Type	Insulation Material	Contact Type	Style	Contact Finish - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Features	Mounting Type	Insulation Color	Contact Finish	Wire Type	Color	Cable Termination
Hirose Electric USA, Inc. MQ172-3PA	-30 ░C	75 ░C	0.154 in	3.9 mm	All	UL94 V-0	30 VDC 40 VAC	General Purpose Telecommunications	Copper Alloy	Receptacle	Solder	3 A	0.203 Ám	8 Áin	1.25 µin	0.032 µm	Gold	Friction Lock	Nylon Polyamide (PA)	Center Strip Contact	Board to Cable/Wire	Gold	1	0.031 in	0.8 mm	Board Guide Solder Retention	Surface Mount Right Angle	Black
Hirose Electric USA, Inc. MQ172-3PA(33)	-30 ░C	75 ░C	0.154 in	3.9 mm	All	UL94 V-0	30 VDC 40 VAC	General Purpose Telecommunications	Copper Alloy	Receptacle	Solder	3 A			1.25 µin	0.032 µm	Gold	Friction Lock	Nylon Polyamide (PA)	Center Strip Contact	Board to Cable/Wire	Gold	1	0.031 in	0.8 mm	Board Guide Solder Retention	Surface Mount Right Angle	Black
Hirose Electric USA, Inc. MQ172-3SA-CV										Plug										Male Pin			1				Free Hanging (In-Line)		Gold	Discrete	Black	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Rectangular Plug Connector Solder Gold
