MQ172-3PA

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 3P 0.031 GOLD SMD R/A

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 3P 0.031 GOLD SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	MQ172-3PA

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1.25 µin
Contact Finish Thickness - Post	0.032 µm
Contact Material	Copper Alloy
Contact Type	Center Strip Contact
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height	0.154 in
Insulation Height	3.9 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VDC, 40 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Material Flammability Rating	Voltage Rating	Applications	Contact Material	Connector Type	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Fastening Type	Insulation Material	Contact Type	Style	Contact Finish - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Features	Mounting Type	Insulation Color	Contact Finish	Wire Type	Color	Cable Termination
Hirose Electric USA, Inc. MQ172-3PA	-30 ░C	75 ░C	0.154 in	3.9 mm	All	UL94 V-0	30 VDC 40 VAC	General Purpose Telecommunications	Copper Alloy	Receptacle	Solder	3 A	0.203 Ám	8 Áin	1.25 µin	0.032 µm	Gold	Friction Lock	Nylon Polyamide (PA)	Center Strip Contact	Board to Cable/Wire	Gold	1	0.031 in	0.8 mm	Board Guide Solder Retention	Surface Mount Right Angle	Black
Hirose Electric USA, Inc. MQ172-3PA(33)	-30 ░C	75 ░C	0.154 in	3.9 mm	All	UL94 V-0	30 VDC 40 VAC	General Purpose Telecommunications	Copper Alloy	Receptacle	Solder	3 A			1.25 µin	0.032 µm	Gold	Friction Lock	Nylon Polyamide (PA)	Center Strip Contact	Board to Cable/Wire	Gold	1	0.031 in	0.8 mm	Board Guide Solder Retention	Surface Mount Right Angle	Black
Hirose Electric USA, Inc. MQ172-3SA-CV										Plug										Male Pin			1				Free Hanging (In-Line)		Gold	Discrete	Black	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

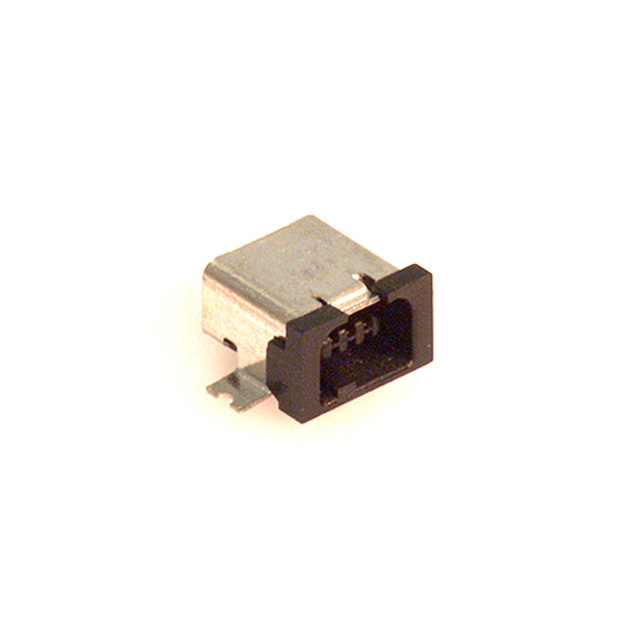

3 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold
