BU-41A-2

Active

Mueller Electric Co

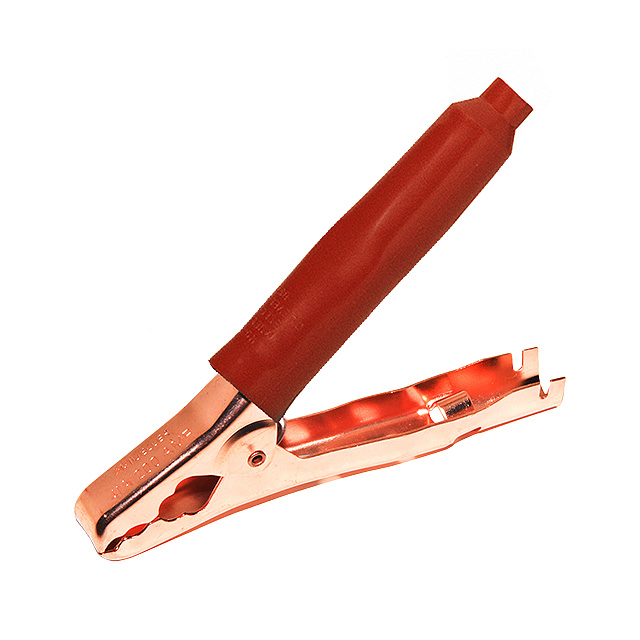

ALLIGATOR CLIP, PLIER, BATTERY, 39.7 MM, 200 A, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBU-60 Series Datasheet Datasheet

BU-41A-2

Active

Mueller Electric Co

ALLIGATOR CLIP, PLIER, BATTERY, 39.7 MM, 200 A, RED

Deep-Dive with AI

DocumentsBU-60 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-41A-2

Color	Red
Current Rating (Amps)	200 A
Insulation	Insulated Sleeve
Jaw Opening	1.625 in
Jaw Opening	41.28 mm
Jaw Opening
Length	152.4 mm
Length	6 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Plating	Copper
Quantity	1 Box
Termination	Crimp or Screw
Type	Battery Terminal Clamp

BU-41 Series

Part	Current Rating (Amps)	Termination	Type	Color	Plating	Jaw Opening	Jaw Opening	Length	Length	Insulation	Quantity	Material - Insulation	Frequency - Max [Max]	Cable Impedance	1st Connector Mounting Type	Cable Type	Features	Overall Impedance	1st Connector	Style	Operating Temperature [Min]	Operating Temperature [Max]	Connector Impedance	2nd Connector	2nd Connector Mounting Type	1st Contact Gender	2nd Contact Gender	Material
Mueller Electric Co BU-41A-2	200 A	Crimp or Screw	Battery Terminal Clamp	Red	Copper	1.625 in	41.28 mm	152.4 mm	6 in	Insulated Sleeve	1 Box	Poly-Vinyl Chloride (PVC)
Mueller Electric Co BU-4150028024				Copper				609.6 mm	24 "				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	BNC Plug	BNC to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-41CPN	400 A	Crimp or Solder	Battery Terminal Clamp	Natural		1.625 in	41.28 mm	152.4 mm	6 in	Non-Insulated	1 Box																	Copper
Mueller Electric Co BU-4150028006				Copper				152.4 mm	6 in				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	BNC Plug	BNC to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-4150028012				Copper				304.8 mm	12 "				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	BNC Plug	BNC to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-4150029006				Copper				152.4 mm	6 in				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	SMA Plug	SMA to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-4150029036				Copper				91.44 cm	36 in				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	SMA Plug	SMA to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-4150028036				Copper				91.44 cm	36 in				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	BNC Plug	BNC to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-41C-0	400 A	Crimp or Screw	Battery Terminal Clamp	Black		1.625 in	41.28 mm	152.4 mm	6 in	Insulated Sleeve	1 Box	Poly-Vinyl Chloride (PVC)																Copper
Mueller Electric Co BU-41C-2	400 A	Crimp or Screw	Battery Terminal Clamp	Red		1.625 in	41.28 mm	152.4 mm	6 in	Insulated Sleeve	1 Box	Poly-Vinyl Chloride (PVC)																Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.41
		10	$ 5.23
		100	$ 4.99
		500	$ 4.82
		1000	$ 4.74
Newark	Each	1	$ 6.66
		100	$ 6.20
		500	$ 5.80
		1000	$ 5.33
		2500	$ 4.87

Description

General part information

BU-41 Series

The BU-41A-2 is a Large Battery Clip made of copper-plated steel with flexible PVC insulators.

Documents

Technical documentation and resources

BU-60 Series Datasheet

Datasheet
