BU-4150028012

Active

Mueller Electric Co

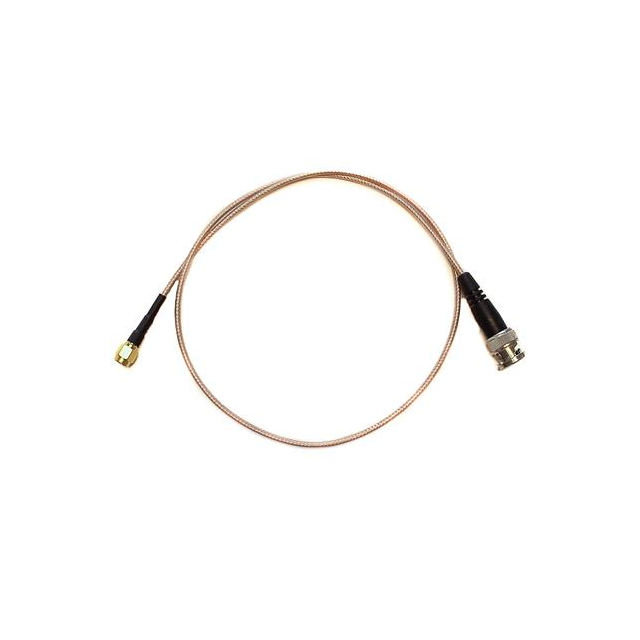

CABLE ASSY, BNC PLUG-SMA PLUG, 304.8MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-4150028012

Active

Mueller Electric Co

CABLE ASSY, BNC PLUG-SMA PLUG, 304.8MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-4150028012

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	12 "
Length	304.8 mm
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	BNC to SMA

BU-41 Series

Part	Current Rating (Amps)	Termination	Type	Color	Plating	Jaw Opening	Jaw Opening	Length	Length	Insulation	Quantity	Material - Insulation	Frequency - Max [Max]	Cable Impedance	1st Connector Mounting Type	Cable Type	Features	Overall Impedance	1st Connector	Style	Operating Temperature [Min]	Operating Temperature [Max]	Connector Impedance	2nd Connector	2nd Connector Mounting Type	1st Contact Gender	2nd Contact Gender	Material
Mueller Electric Co BU-41A-2	200 A	Crimp or Screw	Battery Terminal Clamp	Red	Copper	1.625 in	41.28 mm	152.4 mm	6 in	Insulated Sleeve	1 Box	Poly-Vinyl Chloride (PVC)
Mueller Electric Co BU-4150028024				Copper				609.6 mm	24 "				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	BNC Plug	BNC to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-41CPN	400 A	Crimp or Solder	Battery Terminal Clamp	Natural		1.625 in	41.28 mm	152.4 mm	6 in	Non-Insulated	1 Box																	Copper
Mueller Electric Co BU-4150028006				Copper				152.4 mm	6 in				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	BNC Plug	BNC to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-4150028012				Copper				304.8 mm	12 "				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	BNC Plug	BNC to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-4150029006				Copper				152.4 mm	6 in				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	SMA Plug	SMA to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-4150029036				Copper				91.44 cm	36 in				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	SMA Plug	SMA to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-4150028036				Copper				91.44 cm	36 in				3 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Shielded	50 Ohms	BNC Plug	BNC to SMA	-65 ░C	150 °C	50 Ohms	SMA Plug	Free Hanging (In-Line)	Male	Male
Mueller Electric Co BU-41C-0	400 A	Crimp or Screw	Battery Terminal Clamp	Black		1.625 in	41.28 mm	152.4 mm	6 in	Insulated Sleeve	1 Box	Poly-Vinyl Chloride (PVC)																Copper
Mueller Electric Co BU-41C-2	400 A	Crimp or Screw	Battery Terminal Clamp	Red		1.625 in	41.28 mm	152.4 mm	6 in	Insulated Sleeve	1 Box	Poly-Vinyl Chloride (PVC)																Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.01
		10	$ 10.61
		100	$ 10.11
		500	$ 9.78
		1000	$ 9.61
Newark	Each	1	$ 18.89
		5	$ 18.26
		10	$ 17.61
		20	$ 15.34

Description

General part information

BU-41 Series

Cable Assembly Coaxial BNC to SMA RG-316 12.00" (304.80mm)
