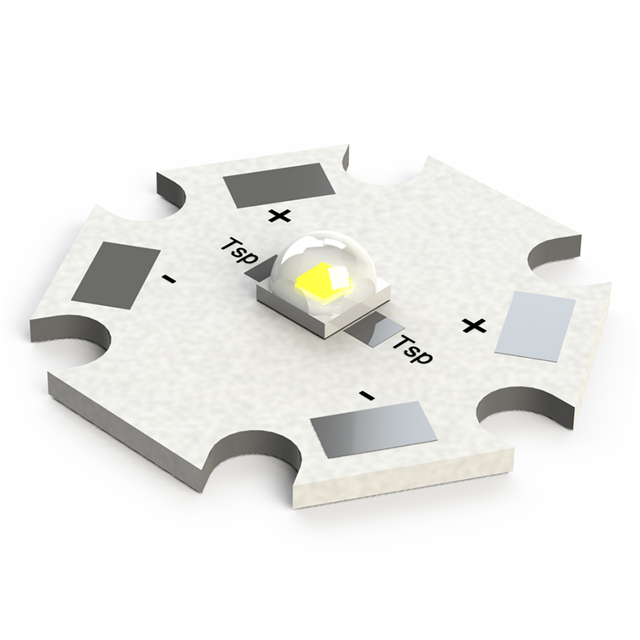

XPLAWT-00-0000-000HU60E8-SB01
New Energy
LED MOD XLAMP WHT STARBRD 2700K
Deep-Dive with AI
Search across all available documentation for this part.
XPLAWT-00-0000-000HU60E8-SB01
New Energy
LED MOD XLAMP WHT STARBRD 2700K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XPLAWT-00-0000-000HU60E8-SB01 |
|---|---|
| CCT (K) | 2700 K |
| Color | White, Warm |
| Configuration | Starboard |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 3 A |
| Current - Test | 1.05 A |
| Lens Type | Domed |
| Lumens/Watt @ Current - Test | 126 lm/W |
| Luminous Flux @ Current/Temperature | 390 lm |
| Size / Dimension [diameter] | 19.89 mm |
| Temperature - Test | 85 °C |
| Type | LED Module |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 2.95 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.23 | |
| 10 | $ 11.11 | |||
| 100 | $ 9.29 | |||
| 500 | $ 8.50 | |||
| 1000 | $ 8.24 | |||
Description
General part information
XPLAWT Series
LED Lighting COBs Engines Modules LED Module XLamp® XP-L White, Warm Starboard
