XPLAWT-H0-0000-000BV20E5-SB01

Active

New Energy

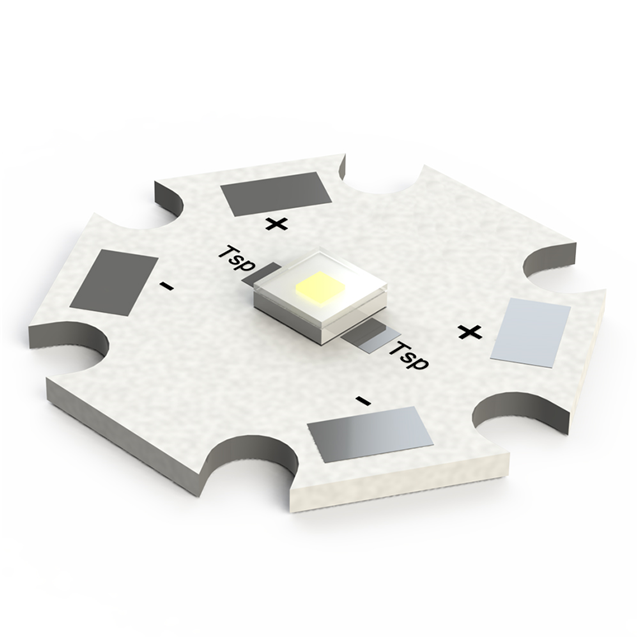

LED MOD XLAMP WHT STARBRD 4000K

Search across all available documentation for this part.

Active

New Energy

LED MOD XLAMP WHT STARBRD 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	XPLAWT-H0-0000-000BV20E5-SB01

CCT (K)	4000 K
Color	Neutral, White
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Max [Max]	3 A
Current - Test	1.05 A
Lens Type	Flat
Lumens/Watt @ Current - Test	132 lm/W
Luminous Flux @ Current/Temperature	410 lm
Size / Dimension [diameter]	19.89 mm
Temperature - Test	85 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	2.95 V

Part	Type	Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	Temperature - Test	Size / Dimension [diameter]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Color	Current - Max [Max]	Lens Type	Viewing Angle	Configuration
New Energy XPLAWT-H0-0000-000BV20E1-SB01	LED Module	1.05 A	6500 K	2.95 V	85 °C	19.89 mm	132 lm/W	70	410 lm	Cool White	3 A	Flat	115 °	Starboard
New Energy XPLAWT-H0-0000-000BV20E5-SB01	LED Module	1.05 A	4000 K	2.95 V	85 °C	19.89 mm	132 lm/W	70	410 lm	Neutral White	3 A	Flat	115 °	Starboard
New Energy XPLAWT-00-0000-000HU60E8-SB01	LED Module	1.05 A	2700 K	2.95 V	85 °C	19.89 mm	126 lm/W	80	390 lm	Warm White	3 A	Domed	125 °	Starboard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 16.00

General part information

LED Lighting COBs Engines Modules LED Module XLamp® XP-L White, Neutral Starboard
