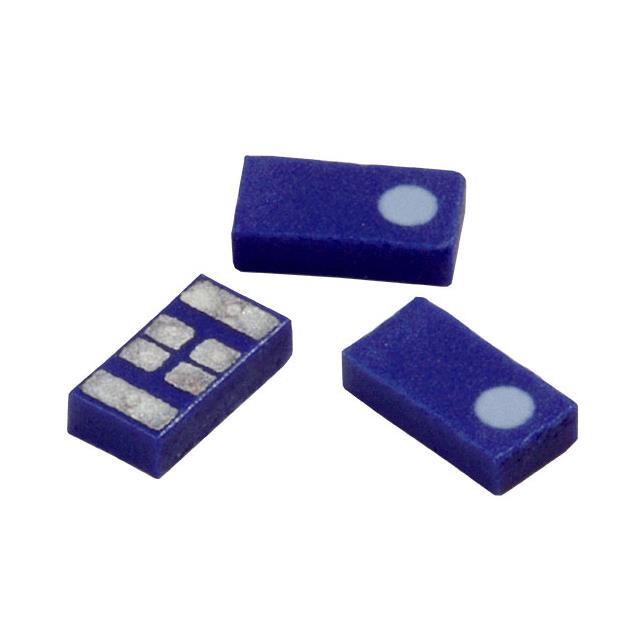

ANT1608LL14R2460A
ActivePulse Electronics
ANT 2.4/6GHZ WIFI 6 2.4G/5-7G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT1608LL14R2460A
ActivePulse Electronics
ANT 2.4/6GHZ WIFI 6 2.4G/5-7G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT1608LL14R2460A |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi 6E |
| Frequency (Center/Band) | 6.1375 GHz, 2.4 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 7.125 GHz |
| Frequency Range [Min] | 5.15 GHz |
| Gain | 3.65 dBi, 3.69 dBi |
| Height (Max) [Max] [z] | 0.016 in |
| Height (Max) [Max] [z] | 0.4 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 1 W |
| Return Loss | 7 dB |
| RF Family/Standard | WiFi |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.32 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.35 | |||
| 25 | $ 0.32 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 4000 | $ 0.10 | ||
| 8000 | $ 0.10 | |||
| 12000 | $ 0.09 | |||
| 28000 | $ 0.08 | |||
| 100000 | $ 0.07 | |||
Description
General part information
ANT1606 Series
RF ANTENNA Wi-Fi 6E Chip Solder Surface Mount
Documents
Technical documentation and resources
