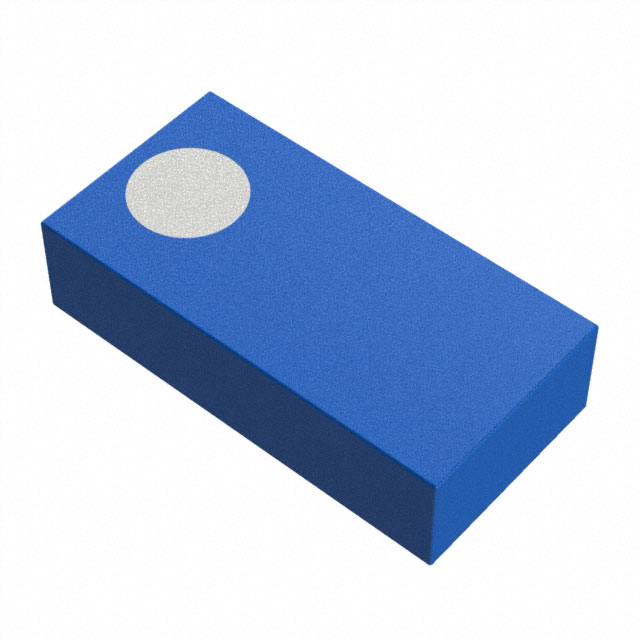

ANT1608LL14R2400A
ActivePulse Electronics
RF ANT 2.45GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT1608LL14R2400A
ActivePulse Electronics
RF ANT 2.45GHZ CHIP SOLDER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT1608LL14R2400A |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi, Bluetooth, ISM, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2 dBic |
| Height (Max) [Max] [z] | 0.016 in |
| Height (Max) [Max] [z] | 0.4 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 1 W |
| Termination | Solder |
| VSWR | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 4000 | $ 0.12 | ||
| 8000 | $ 0.11 | |||
| 12000 | $ 0.10 | |||
| 28000 | $ 0.10 | |||
| 100000 | $ 0.09 | |||
Description
General part information
ANT1606 Series
RF ANTENNA Bluetooth, ISM, Wi-Fi, Zigbee™ Chip Solder Surface Mount
