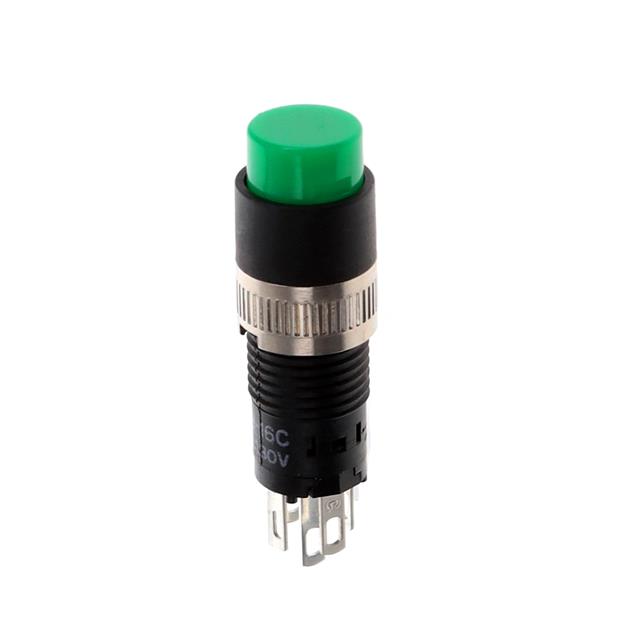

HB16CKW01-F

Active

NKK Switches

SWITCH PUSH SPDT 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HB16CKW01-F

Active

NKK Switches

SWITCH PUSH SPDT 0.1A 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HB16CKW01-F

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	30 V
Voltage Rating - DC	30 V

HB16CKW01 Series

Part	Switch Function	Mounting Type	Voltage Rating - AC	Circuit	Voltage Rating - DC	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Marking	Actuator Type	Termination Style	Illumination Type, Color	Electrical Life	Illumination Voltage (Nominal)	Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)
NKK Switches HB16CKW01-6B-JB	On-On	Panel Mount Front	30 V	SPDT	30 V	Clear	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	LED White	50000 Cycles	3.3 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-G	On-On	Panel Mount Front	30 V	SPDT	30 V	Blue	70 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug		50000 Cycles		Standard	8 mm	100 mA
NKK Switches HB16CKW01-5C-CB	On-On	Panel Mount Front	30 V	SPDT	30 V	Red	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	LED Red	50000 Cycles	2.1 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-5D-DB	On-On	Panel Mount Front	30 V	SPDT	30 V	Amber	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	Amber LED	50000 Cycles	2.05 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-6G-JB	On-On	Panel Mount Front	30 V	SPDT	30 V	Clear	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	Blue LED	50000 Cycles	3.6 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-E	On-On	Panel Mount Front	30 V	SPDT	30 V	Yellow	70 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug		50000 Cycles		Standard	8 mm	100 mA
NKK Switches HB16CKW01-F	On-On	Panel Mount Front	30 V	SPDT	30 V	Green	70 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug		50000 Cycles		Standard	8 mm	100 mA
NKK Switches HB16CKW01-B	On-On	Panel Mount Front	30 V	SPDT	30 V	White	70 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug		50000 Cycles		Standard	8 mm	100 mA
NKK Switches HB16CKW01-5D-JB	On-On	Panel Mount Front	30 V	SPDT	30 V	Clear	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	Amber LED	50000 Cycles	2.05 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-5C-JB	On-On	Panel Mount Front	30 V	SPDT	30 V	Clear	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	LED Red	50000 Cycles	2.1 VDC	Illuminated Standard	8 mm	100 mA
