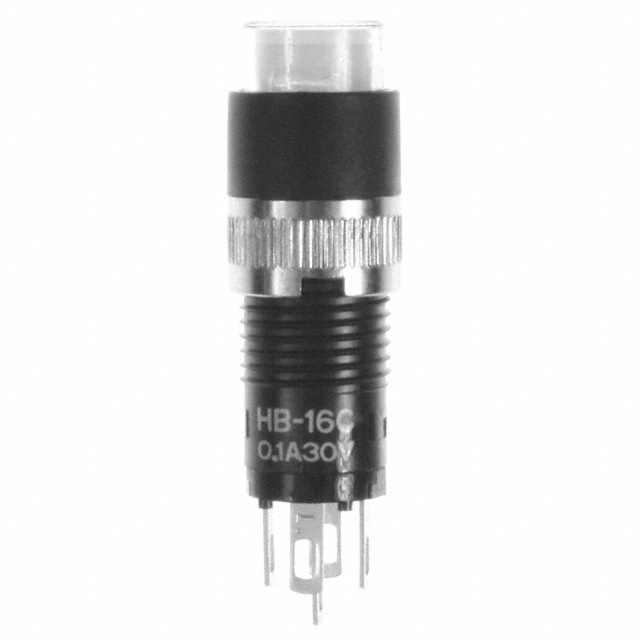

HB16CKW01-6B-JB

Active

NKK Switches

SWITCH PUSH SPDT 0.1A 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HB16CKW01-6B-JB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	3.3 VDC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	30 V
Voltage Rating - DC	30 V

HB16CKW01 Series

Part	Switch Function	Mounting Type	Voltage Rating - AC	Circuit	Voltage Rating - DC	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Marking	Actuator Type	Termination Style	Illumination Type, Color	Electrical Life	Illumination Voltage (Nominal)	Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)
NKK Switches HB16CKW01-6B-JB	On-On	Panel Mount Front	30 V	SPDT	30 V	Clear	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	LED White	50000 Cycles	3.3 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-G	On-On	Panel Mount Front	30 V	SPDT	30 V	Blue	70 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug		50000 Cycles		Standard	8 mm	100 mA
NKK Switches HB16CKW01-5C-CB	On-On	Panel Mount Front	30 V	SPDT	30 V	Red	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	LED Red	50000 Cycles	2.1 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-5D-DB	On-On	Panel Mount Front	30 V	SPDT	30 V	Amber	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	Amber LED	50000 Cycles	2.05 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-6G-JB	On-On	Panel Mount Front	30 V	SPDT	30 V	Clear	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	Blue LED	50000 Cycles	3.6 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-E	On-On	Panel Mount Front	30 V	SPDT	30 V	Yellow	70 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug		50000 Cycles		Standard	8 mm	100 mA
NKK Switches HB16CKW01-F	On-On	Panel Mount Front	30 V	SPDT	30 V	Green	70 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug		50000 Cycles		Standard	8 mm	100 mA
NKK Switches HB16CKW01-B	On-On	Panel Mount Front	30 V	SPDT	30 V	White	70 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug		50000 Cycles		Standard	8 mm	100 mA
NKK Switches HB16CKW01-5D-JB	On-On	Panel Mount Front	30 V	SPDT	30 V	Clear	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	Amber LED	50000 Cycles	2.05 VDC	Illuminated Standard	8 mm	100 mA
NKK Switches HB16CKW01-5C-JB	On-On	Panel Mount Front	30 V	SPDT	30 V	Clear	50 °C	-25 °C	100000 Cycles	No Marking	Button Round	Solder Lug	LED Red	50000 Cycles	2.1 VDC	Illuminated Standard	8 mm	100 mA
