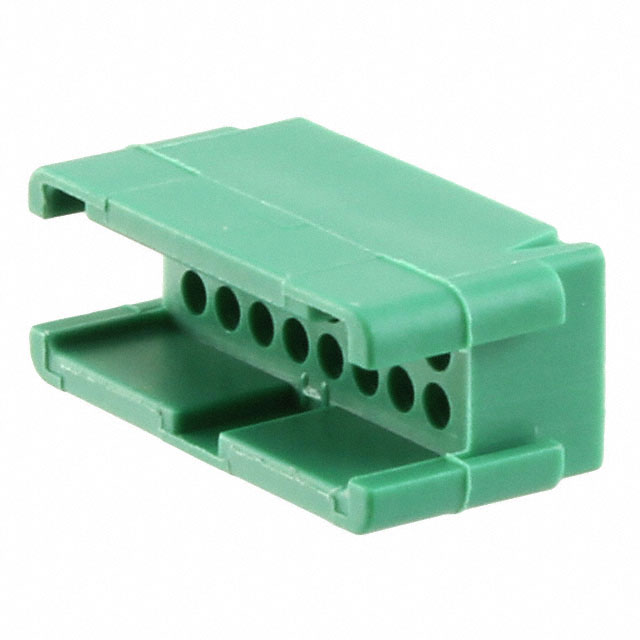

G125-3041696L0

Active

Harwin Inc.

8+8 POS. MALE DIL CABLE HOUSING, NO LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125-2040696L0 G125-0010005 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-3041696L0

Connector Type	Header
Contact Termination	Crimp
Contact Type	Male Pin
Features	Potting Wall
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Row Spacing	1.25 mm
Row Spacing	0.049 in

G125-304 Series

Part	Row Spacing	Row Spacing	Note	Number of Rows	Connector Type	Features	Contact Termination	Insulation Material	Pitch [x]	Pitch [x]	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Fastening Type
Harwin Inc. G125-3042696L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	26	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3043496L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	34	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3041696L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm		Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)	16
Harwin Inc. G125-3041696L4	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm		Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)	16	Latch Lock
Harwin Inc. G125-3045096L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	50	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3041096L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	10	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3040696L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	6	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3041296L4	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	12	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)		Latch Lock
Harwin Inc. G125-3042096L4	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	20	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)		Latch Lock
