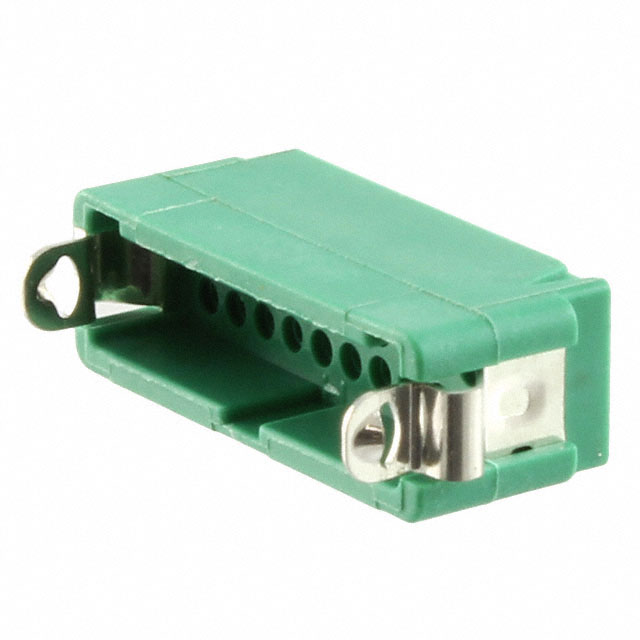

G125-3042096L4

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, GECKO G125 SERIES, PLUG, 20, 1.25 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-0010005 Datasheet +7

G125-3042096L4

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, GECKO G125 SERIES, PLUG, 20, 1.25 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125-0010005 Datasheet +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-3042096L4

Connector Type	Header
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Lock
Features	Potting Wall
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Row Spacing	1.25 mm
Row Spacing	0.049 in

G125-304 Series

Part	Row Spacing	Row Spacing	Note	Number of Rows	Connector Type	Features	Contact Termination	Insulation Material	Pitch [x]	Pitch [x]	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Fastening Type
Harwin Inc. G125-3042696L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	26	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3043496L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	34	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3041696L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm		Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)	16
Harwin Inc. G125-3041696L4	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm		Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)	16	Latch Lock
Harwin Inc. G125-3045096L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	50	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3041096L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	10	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3040696L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	6	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3041296L4	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	12	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)		Latch Lock
Harwin Inc. G125-3042096L4	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	20	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)		Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.14
		10	$ 4.67
		30	$ 4.42
		50	$ 4.32
		100	$ 4.11
		250	$ 3.60
		500	$ 3.49
		1000	$ 2.98
		2500	$ 2.77
Newark	Each	1	$ 4.66
		10	$ 3.80
		25	$ 3.55
		50	$ 3.29
		100	$ 3.10
		250	$ 2.85
		500	$ 2.68
		1000	$ 2.54

Description

General part information

G125-304 Series

20 Rectangular Connectors - Housings Header 0.049" (1.25mm)

Documents

Technical documentation and resources

G125-0010005

Datasheet

G125 Spec Sheet

Datasheet

G125-2040696L0

G125-3042096L4

Deep-Dive with AI

G125-3042096L4

Deep-Dive with AI

Technical Specifications

G125-304 Series

Pricing

Description

G125-304 Series

Documents

G125-0010005

Datasheet

G125 Spec Sheet

G125-2040696L0

3D Product Image EN

Drawing EN

Manufacturer Catalogue EN

Technical Data Sheet EN

Technical Data Sheet EN

G125-304 Series
