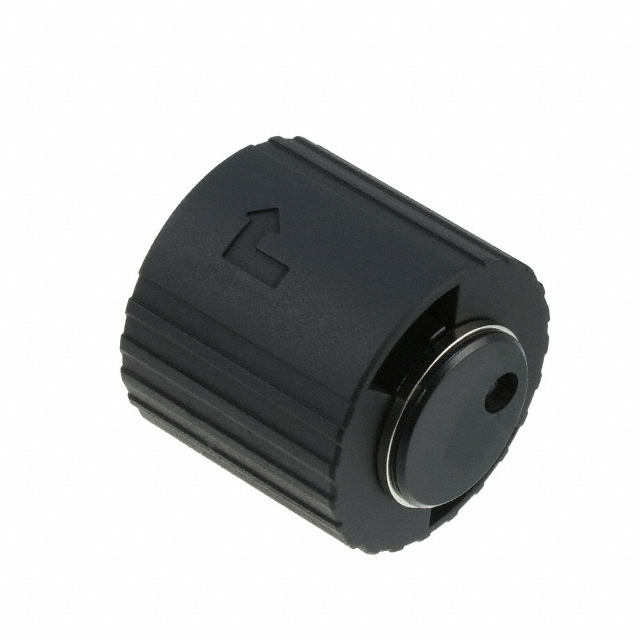

SW20-RC1(01)

Active

Hirose Electric USA, Inc.

WATERPROOF OPTICAL CONNECTORS WITH BUILT-IN SC/LC-DUPLEX

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

WATERPROOF OPTICAL CONNECTORS WITH BUILT-IN SC/LC-DUPLEX

Technical Specifications

Parameters and characteristics for this part

Specification	SW20-RC1(01)

Accessory Type	Dust Cap
For Use With/Related Products	SW20 Receptacles
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

Part	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Mode	Fastening Type	Reflection	Housing Material	Body Material	Mounting Type	Connector Type	Ingress Protection	Mating Cycles	Housing Color	Cable Diameter [diameter]	Simplex/Duplex	For Use With/Related Products	Accessory Type	Type	Features	Convert To (Adapter End)	Convert From (Adapter End)	Color
Hirose Electric USA, Inc. SW20-SCPT75-2(23)	SC	85 °C	-40 °C	Singlemode	Bayonet Lock	-40 dB	Zinc Alloy	Zinc Alloy	Free Hanging (In-Line)	Plug	IP67 - Dust Tight Waterproof	200	Black	7 mm	Simplex
Hirose Electric USA, Inc. SW20-LCPT75-3	LC	85 °C	-40 °C	Singlemode	Bayonet Lock	-40 dB	Zinc Die Cast	Zinc Die Cast	Free Hanging (In-Line)	Plug	IP67 - Dust Tight Waterproof	200	Black	7 mm	Duplex
Hirose Electric USA, Inc. SW20-SCPT75-2(22)	SC	85 °C	-40 °C	Singlemode	Bayonet Lock	-40 dB	Zinc Alloy	Zinc Alloy	Free Hanging (In-Line)	Plug	IP67 - Dust Tight Waterproof	200	Black	7 mm	Simplex
Hirose Electric USA, Inc. SW20-RC1(01)		85 °C	-40 °C								IP67 - Dust Tight Waterproof					SW20 Receptacles	Dust Cap
Hirose Electric USA, Inc. SW20-LCA-1		85 °C	-40 °C				Zinc Die Cast		Flange Panel Mount		IP67 - Dust Tight Waterproof				Duplex			Coupler	Dust Cap	LC Receptacle	LC Receptacle	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Dust Cap For SW20 Receptacles
