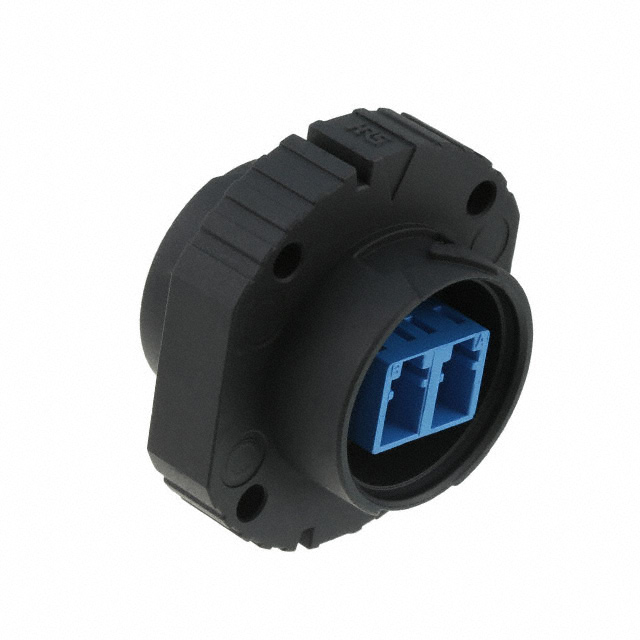

SW20-LCA-1
ActiveHirose Electric USA, Inc.
CONN COUPLER RCPT LC-LC DUPLEX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SW20-LCA-1
ActiveHirose Electric USA, Inc.
CONN COUPLER RCPT LC-LC DUPLEX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SW20-LCA-1 |
|---|---|
| Color | Blue |
| Convert From (Adapter End) | LC Receptacle |
| Convert To (Adapter End) | LC Receptacle |
| Features | Dust Cap |
| Housing Material | Zinc Die Cast |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Simplex/Duplex | Duplex |
| Type | Coupler |
SW20 Series
| Part | Connector Style | Operating Temperature [Max] | Operating Temperature [Min] | Mode | Fastening Type | Reflection | Housing Material | Body Material | Mounting Type | Connector Type | Ingress Protection | Mating Cycles | Housing Color | Cable Diameter [diameter] | Simplex/Duplex | For Use With/Related Products | Accessory Type | Type | Features | Convert To (Adapter End) | Convert From (Adapter End) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | SC | 85 °C | -40 °C | Singlemode | Bayonet Lock | -40 dB | Zinc Alloy | Zinc Alloy | Free Hanging (In-Line) | Plug | IP67 - Dust Tight Waterproof | 200 | Black | 7 mm | Simplex | |||||||
Hirose Electric USA, Inc. | LC | 85 °C | -40 °C | Singlemode | Bayonet Lock | -40 dB | Zinc Die Cast | Zinc Die Cast | Free Hanging (In-Line) | Plug | IP67 - Dust Tight Waterproof | 200 | Black | 7 mm | Duplex | |||||||
Hirose Electric USA, Inc. | SC | 85 °C | -40 °C | Singlemode | Bayonet Lock | -40 dB | Zinc Alloy | Zinc Alloy | Free Hanging (In-Line) | Plug | IP67 - Dust Tight Waterproof | 200 | Black | 7 mm | Simplex | |||||||
Hirose Electric USA, Inc. | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | SW20 Receptacles | Dust Cap | |||||||||||||||||
Hirose Electric USA, Inc. | 85 °C | -40 °C | Zinc Die Cast | Flange Panel Mount | IP67 - Dust Tight Waterproof | Duplex | Coupler | Dust Cap | LC Receptacle | LC Receptacle | Blue |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 25.40 | |
| 25 | $ 24.50 | |||
| 50 | $ 23.70 | |||
| 100 | $ 23.25 | |||
Description
General part information
SW20 Series
Coupler Fiber Optic Connector LC Receptacle To LC Receptacle Panel Mount, Flange
