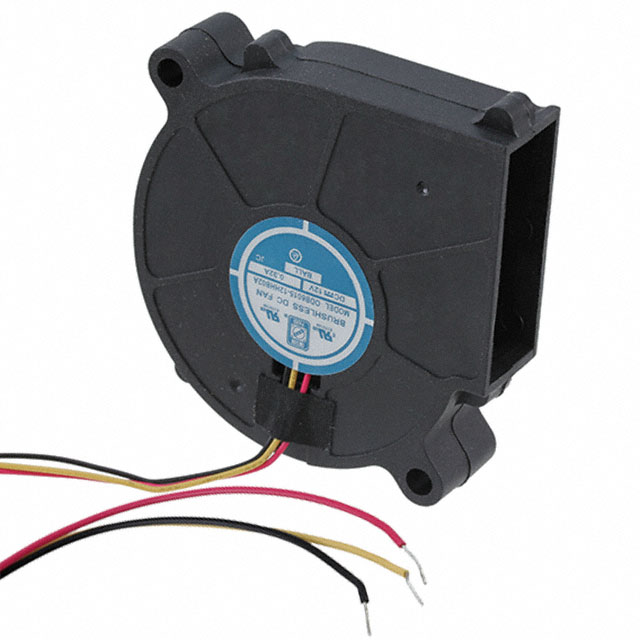

ODB6015-12HHB02A

Active

Orion Fans

FAN BLOWER, 60MM, 3.84W, 12VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Orion Fans

FAN BLOWER, 60MM, 3.84W, 12VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ODB6015-12HHB02A

Air Flow	0.207 mł/min
Air Flow	7.4 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Blower
Features	Locked Rotor Sensor
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	44 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.84 W
RPM	5000 RPM
Size / Dimension [x]	57.25 mm
Size / Dimension [z]	50.37 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	34.93 g
Weight	0.077 lb
Width [y]	15.2 mm

Part	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Features	Approval Agency	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Lifetime @ Temp.	Air Flow	Air Flow	Noise	Size / Dimension [x]	Size / Dimension [z]	RPM	Fan Type	Width [y]	Material - Blade	Current Rating (Amps)	Weight	Weight
Orion Fans ODB6015-12HHB01A	Ball	13.2 VDC	7 V	12 VDC	Auto Restart Locked Rotor Sensor	cURus TUV	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	3.84 W	70000 Hrs	0.21 mł/min	7.5 CFM	44 dB	57.25 mm	50.37 mm	5000 RPM	Blower	15.2 mm	Polybutylene Terephthalate (PBT)	0.2 A
Orion Fans ODB6015-12HHB02A	Ball	13.2 VDC	7 V	12 VDC	Locked Rotor Sensor	cURus TUV	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	3.84 W	70000 Hrs	0.207 mł/min	7.4 CFM	44 dB	57.25 mm	50.37 mm	5000 RPM	Blower	15.2 mm	Polybutylene Terephthalate (PBT)	0.2 A	34.93 g	0.077 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 12VDC Rectangular/Rounded - 57.25mm L x 50.37mm H Ball 7.4 CFM (0.207m³/min) 3 Wire Leads
