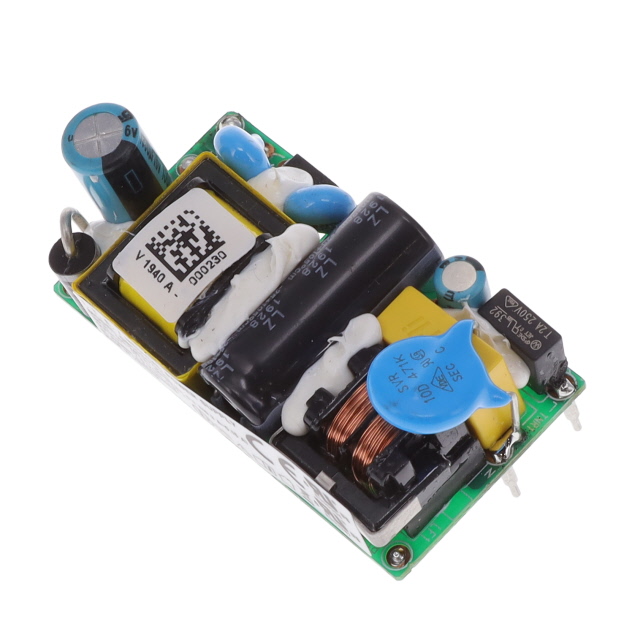

GB10S07P01

Active

SL POWER / Advanced Energy

10 WATTS SINGLE OUTPUT POWER SUPPLY

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

10 WATTS SINGLE OUTPUT POWER SUPPLY

Technical Specifications

Parameters and characteristics for this part

Part	Features	Approval Agency	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 1	Efficiency	Number of Outputs	Minimum Load Required	Standard Number
SL POWER / Advanced Energy GB10S07K01	Universal Input	CE cURus UL	4000 V	7.5 V	-25 °C	70 °C	ITE (Commercial) Medical	9.8 W	240 VAC	100 VAC	Chassis Mount	Open Frame	40.6 mm	1.6 "	3.38 in	85.9 mm	25.4 mm	1 "	1.3 A	88 %	1
SL POWER / Advanced Energy GB10S07P01	Universal Input	CE cURus DEMKO	4000 V	7.5 V	-25 °C	70 °C	ITE (Commercial) Medical	9.8 W	264 VAC	90 VAC	Chassis Mount	Open Frame	27.3 mm	1.07 in	2.05 "	52 mm	18 mm	0.71 in	1.3 A	88 %	1		60601-1 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 7.5V 90 ~ 264 VAC Input

Technical documentation and resources
