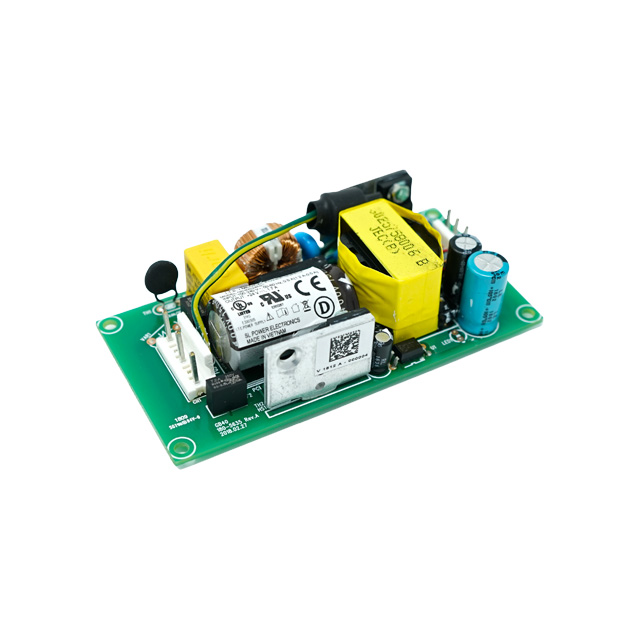

GB10S07K01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 7.5V 9.8W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GB10S07K01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 7.5V 9.8W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GB10S07K01 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, UL |
| Current - Output 1 | 1.3 A |
| Efficiency | 88 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 9.8 W |
| Size / Dimension [x] | 3.38 in |
| Size / Dimension [x] | 85.9 mm |
| Size / Dimension [y] | 40.6 mm |
| Size / Dimension [y] | 1.6 " |
| Size / Dimension [z] | 25.4 mm |
| Size / Dimension [z] | 1 " |
| Type | Open Frame |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.94 | |
| 5 | $ 5.86 | |||
| 10 | $ 5.81 | |||
Description
General part information
GB10S07 Series
Open Frame AC DC Converters 1 Output 7.5V 100 ~ 240 VAC Input
