Z125-901

Active

Harwin Inc.

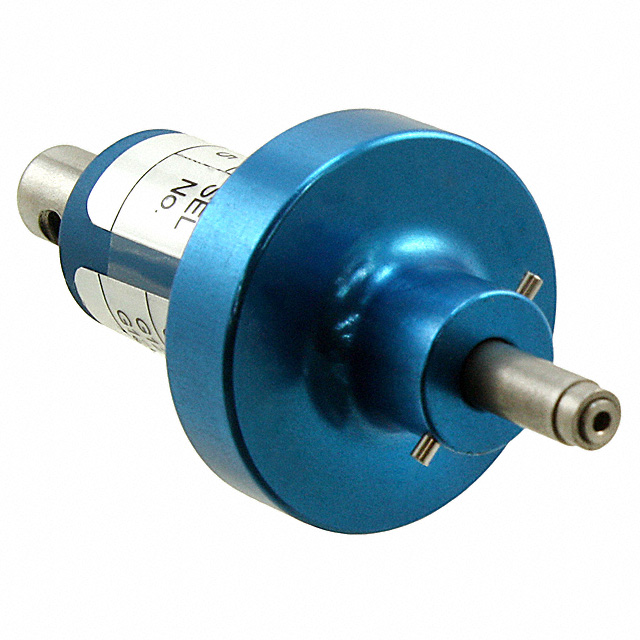

CRIMP TOOL LOCATOR, HARWIN Z125-900 SERIES HAND CRIMP TOOLS, G125 GECKOP CRIMP CONTACTS

Search across all available documentation for this part.

Active

Harwin Inc.

CRIMP TOOL LOCATOR, HARWIN Z125-900 SERIES HAND CRIMP TOOLS, G125 GECKOP CRIMP CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	Z125-901

For Use With/Related Products	Rectangular Contacts
For Use With/Related Products [Max]	32 AWG
For Use With/Related Products [Min]	26 AWG
Tool Type	Positioner

Part	Wire Entry Location	Ratcheting	Tool Type Feature	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	For Use With/Related Products	Tool Type	Accessory Type	For Use With/Related Products	For Use With/Related Products [Max]	For Use With/Related Products [Min]
Harwin Inc. Z125-900	Side Entry	Ratchet	Without Positioner	26 AWG	32 AWG	Rectangular Contacts	Hand Crimper
Harwin Inc. Z125-904						Rectangular Contacts		Positioning Tool	18 AWG
Harwin Inc. Z125-902						Rectangular Contacts 24-32 AWG	Insertion/Extraction Tool
Harwin Inc. Z125-903	Side Entry					Contacts	Hand Crimper
Harwin Inc. Z125-901						Rectangular Contacts	Positioner			32 AWG	26 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tool Positioner For Rectangular Contacts, 26-32 AWG
