Z125-902

Active

Harwin Inc.

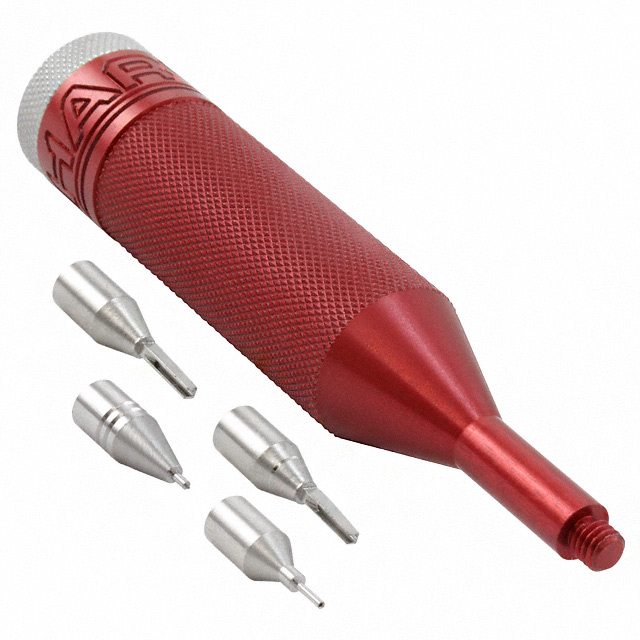

INSERTION TOOL, HARWIN GECKO G125 SERIES CRIMP CONTACTS, GECKO SERIES

Search across all available documentation for this part.

Active

Harwin Inc.

INSERTION TOOL, HARWIN GECKO G125 SERIES CRIMP CONTACTS, GECKO SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	Z125-902

For Use With/Related Products	Rectangular Contacts, 24-32 AWG
Tool Type	Insertion/Extraction Tool

Part	Wire Entry Location	Ratcheting	Tool Type Feature	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	For Use With/Related Products	Tool Type	Accessory Type	For Use With/Related Products	For Use With/Related Products [Max]	For Use With/Related Products [Min]
Harwin Inc. Z125-900	Side Entry	Ratchet	Without Positioner	26 AWG	32 AWG	Rectangular Contacts	Hand Crimper
Harwin Inc. Z125-904						Rectangular Contacts		Positioning Tool	18 AWG
Harwin Inc. Z125-902						Rectangular Contacts 24-32 AWG	Insertion/Extraction Tool
Harwin Inc. Z125-903	Side Entry					Contacts	Hand Crimper
Harwin Inc. Z125-901						Rectangular Contacts	Positioner			32 AWG	26 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insertion/Extraction Tool For Rectangular Contacts, 24-32 AWG
