7032-6729-060

Active

Amphenol SV Microwave

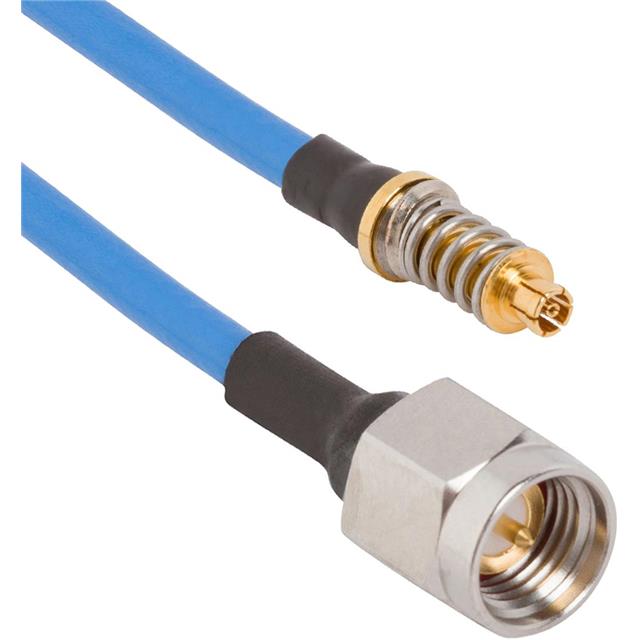

CABLE ASSEMBLY 0.085 T-FLEX 405 0.152M SMPM TO SMA F-M BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7032-6729-060

Active

Amphenol SV Microwave

CABLE ASSEMBLY 0.085 T-FLEX 405 0.152M SMPM TO SMA F-M BAG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7032-6729-060

1st Connector	SMPM Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	TFlex-405
Color	Blue
Features	Shielded
Frequency - Max [Max]	26.5 GHz
Length	152.4 mm
Length	6 in
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	SMA to SMPM

7032 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Overall Impedance	Frequency - Max [Max]	1st Contact Gender	Style	2nd Connector Mounting Type	1st Connector	2nd Contact Gender	Color	2nd Connector	1st Connector Mounting Type	Features	Cable Type	Style	2nd Connector
Amphenol SV Microwave 7032-6729-060	-65 ░C	165 °C	152.4 mm	6 in	50 Ohms	26.5 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue	SMA Plug	Free Hanging (In-Line)	Shielded	TFlex-405
Amphenol SV Microwave 7032-6757	-65 ░C	165 °C	152.4 mm	6 in	50 Ohms	40 GHz	Female	SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue		Free Hanging (In-Line)	Shielded	0.047" Flexible Cable	2.92 mm	2.92 mm
Amphenol SV Microwave 7032-6355	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	40 GHz	Female	SMPM to SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Female	Blue	SMPM Jack Right Angle	Free Hanging (In-Line)	Shielded	0.047" Flexible Cable
Amphenol SV Microwave 7032-7525	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	18 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue	SMA Plug	Free Hanging (In-Line)	Shielded	0.047" Flexible Cable
Amphenol SV Microwave 7032-7240	-65 ░C	165 °C	152.4 mm	6 in	50 Ohms	18 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Male	Blue	SMA Plug Right Angle	Free Hanging (In-Line)	Shielded	TFlex-405
Amphenol SV Microwave 7032-7434-120	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	18 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue	SMA Plug	Free Hanging (In-Line)	Shielded	TFlex-405
Amphenol SV Microwave 7032-7241	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	18 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Male	Blue	SMA Plug Right Angle	Free Hanging (In-Line)	Shielded	TFlex-405
Amphenol SV Microwave 7032-7151	-65 ░C	165 °C	609.6 mm	24 "	50 Ohms	40 GHz	Female	SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue		Free Hanging (In-Line)	Shielded	0.047" Flexible Cable	2.92 mm	2.92 mm
Amphenol SV Microwave 7032-6760	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	40 GHz	Female	SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Male	Blue		Free Hanging (In-Line)	Shielded	0.047" Flexible Cable	2.92 mm	2.92 mm
Amphenol SV Microwave 7032-7157	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	40 GHz	Female	SMPM to SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Female	Blue	SMPM Jack Right Angle	Free Hanging (In-Line)	Shielded	TFlex-405

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 164.80
		10	$ 152.72
		25	$ 147.22
		50	$ 146.12

Description

General part information

7032 Series

Cable Assembly Coaxial SMA to SMPM TFlex-405 6.000" (152.40mm)
