7032-7525

Active

Amphenol SV Microwave

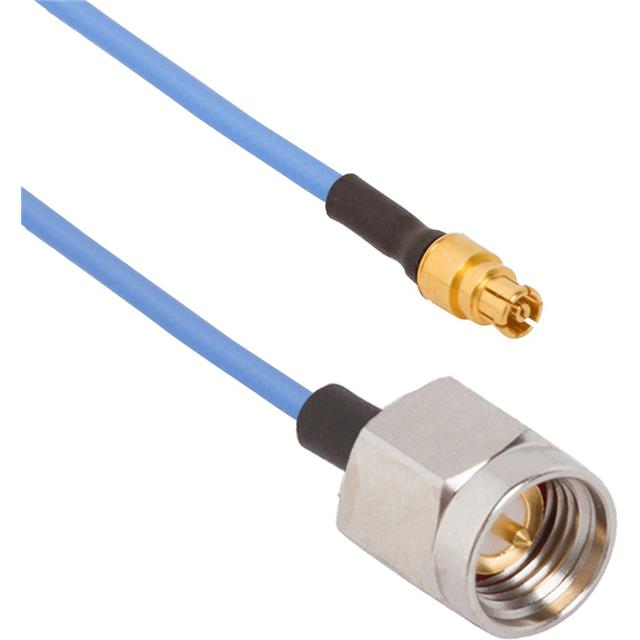

CBL ASSY SMA-SMPM JACK-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

7032-7525

Active

Amphenol SV Microwave

CBL ASSY SMA-SMPM JACK-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7032-7525

1st Connector	SMPM Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	0.047" Flexible Cable
Color	Blue
Features	Shielded
Frequency - Max [Max]	18 GHz
Length	12 "
Length	304.8 mm
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	SMA to SMPM

7032 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Overall Impedance	Frequency - Max [Max]	1st Contact Gender	Style	2nd Connector Mounting Type	1st Connector	2nd Contact Gender	Color	2nd Connector	1st Connector Mounting Type	Features	Cable Type	Style	2nd Connector
Amphenol SV Microwave 7032-6729-060	-65 ░C	165 °C	152.4 mm	6 in	50 Ohms	26.5 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue	SMA Plug	Free Hanging (In-Line)	Shielded	TFlex-405
Amphenol SV Microwave 7032-6757	-65 ░C	165 °C	152.4 mm	6 in	50 Ohms	40 GHz	Female	SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue		Free Hanging (In-Line)	Shielded	0.047" Flexible Cable	2.92 mm	2.92 mm
Amphenol SV Microwave 7032-6355	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	40 GHz	Female	SMPM to SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Female	Blue	SMPM Jack Right Angle	Free Hanging (In-Line)	Shielded	0.047" Flexible Cable
Amphenol SV Microwave 7032-7525	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	18 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue	SMA Plug	Free Hanging (In-Line)	Shielded	0.047" Flexible Cable
Amphenol SV Microwave 7032-7240	-65 ░C	165 °C	152.4 mm	6 in	50 Ohms	18 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Male	Blue	SMA Plug Right Angle	Free Hanging (In-Line)	Shielded	TFlex-405
Amphenol SV Microwave 7032-7434-120	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	18 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue	SMA Plug	Free Hanging (In-Line)	Shielded	TFlex-405
Amphenol SV Microwave 7032-7241	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	18 GHz	Female	SMA to SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Male	Blue	SMA Plug Right Angle	Free Hanging (In-Line)	Shielded	TFlex-405
Amphenol SV Microwave 7032-7151	-65 ░C	165 °C	609.6 mm	24 "	50 Ohms	40 GHz	Female	SMPM	Free Hanging (In-Line)	SMPM Jack	Male	Blue		Free Hanging (In-Line)	Shielded	0.047" Flexible Cable	2.92 mm	2.92 mm
Amphenol SV Microwave 7032-6760	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	40 GHz	Female	SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Male	Blue		Free Hanging (In-Line)	Shielded	0.047" Flexible Cable	2.92 mm	2.92 mm
Amphenol SV Microwave 7032-7157	-65 ░C	165 °C	304.8 mm	12 "	50 Ohms	40 GHz	Female	SMPM to SMPM	Free Hanging (In-Line)	Right Angle SMPM Jack	Female	Blue	SMPM Jack Right Angle	Free Hanging (In-Line)	Shielded	TFlex-405

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 138.58
		10	$ 127.17
		25	$ 122.28
		50	$ 118.20

Description

General part information

7032 Series

Cable Assembly Coaxial SMA to SMPM 0.047" Flexible Cable 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
