SI8275ABD-IM

NRND

Skyworks Solutions Inc.

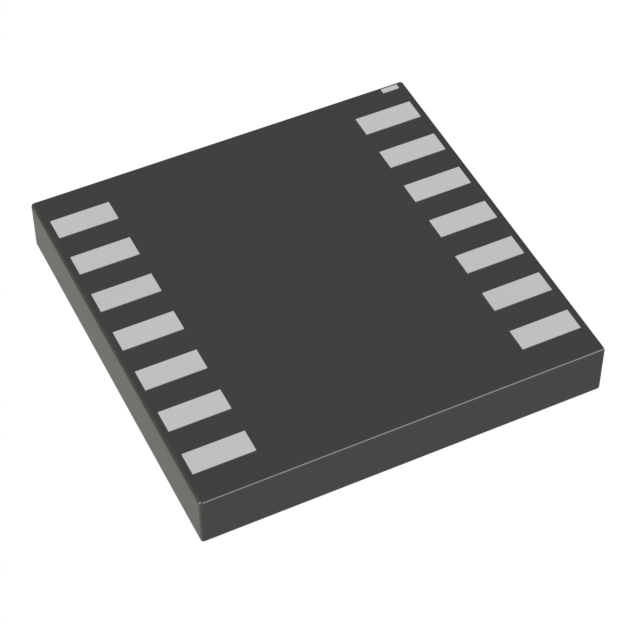

DRIVER 4A 2-OUT HIGH SIDE/LOW SIDE HALF BRDG 14-PIN LGA AUTOMOTIVE AEC-Q100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI8275ABD-IM

NRND

Skyworks Solutions Inc.

DRIVER 4A 2-OUT HIGH SIDE/LOW SIDE HALF BRDG 14-PIN LGA AUTOMOTIVE AEC-Q100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI8275ABD-IM

Approval Agency	CQC, CSA, VDE, UR
Common Mode Transient Immunity (Min) [Min]	200 V/ns
Current - Output High, Low	1.8 A, 4 A
Current - Peak Output	4 A
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-VFLGA
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Pulse Width Distortion (Max) [Max]	8 ns
Rise / Fall Time (Typ) [custom]	13.3 ns
Rise / Fall Time (Typ) [custom]	10.5 ns
Supplier Device Package	14-LGA (5x5)
Technology	RF Coupling
Voltage - Isolation	2500 Vrms
Voltage - Output Supply [Max]	30 V
Voltage - Output Supply [Min]	4.6 V

SI8275 Series

Part	Technology	Current - Peak Output	Approval Agency	Number of Channels [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Pulse Width Distortion (Max) [Max]	Mounting Type	Voltage - Isolation	Common Mode Transient Immunity (Min) [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output High, Low	Package / Case [x]	Package / Case [y]	Propagation Delay tpLH / tpHL (Max)	Number of Channels	Contents	Supplied Contents	Utilized IC / Part	Function	Type
Skyworks Solutions Inc. SI8275AB-IM1	RF Coupling	4 A	CQC CSA UR VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	200 V/ns	14-VDFN	125 °C	-40 °C	75 ns	75 ns	14-QFN (5x5)	13.3 ns	10.5 ns	1.8 A 4 A
Skyworks Solutions Inc. SI8275DBD-IS1R	RF Coupling	4 A	CQC CSA UL VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	200 V/ns	16-SOIC	125 °C	-40 °C	75 ns	75 ns	16-SOIC	13.3 ns	10.5 ns	1.8 A 4 A	0.154 in	3.9 mm
Skyworks Solutions Inc. SI8275ABD-IM	RF Coupling	4 A	CQC CSA UR VDE	2	4.6 V	30 V	8 ns	Surface Mount	2500 Vrms	200 V/ns	14-VFLGA	125 °C	-40 °C	75 ns	75 ns	14-LGA (5x5)	13.3 ns	10.5 ns	1.8 A 4 A
Skyworks Solutions Inc. SI8275AB-IMR	RF Coupling	4 A	CQC CSA UR VDE	2	4.6 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	14-VFLGA	125 °C	-40 °C			14-LGA (5x5)	13.3 ns	10.5 ns	1.8 A 4 A			60 ns
Skyworks Solutions Inc. SI8275AB-IM	RF Coupling	4 A	CQC CSA UR VDE	2	4.6 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	14-VFLGA	125 °C	-40 °C			14-LGA (5x5)	13.3 ns	10.5 ns	1.8 A 4 A			60 ns
Skyworks Solutions Inc. SI8275DB-IS1	RF Coupling	4 A	CQC CSA UR VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	16-SOIC	125 °C	-40 °C			16-SOIC	13.3 ns	10.5 ns	1.8 A 4 A	0.154 in	3.9 mm	60 ns
Skyworks Solutions Inc. SI8275GA-IM1	RF Coupling	4 A	CQC CSA UL VDE		4.2 V	30 V	8 ns	Surface Mount	1000 VAC	200 V/ns	14-VDFN	125 °C	-40 °C	75 ns	75 ns	14-QFN (5x5)	13.3 ns	10.5 ns	1.8 A 4 A				1
Skyworks Solutions Inc. SI8275DA-IM1	RF Coupling	4 A	CQC CSA UL VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	14-VDFN	125 °C	-40 °C			14-QFN (5x5)	13.3 ns	10.5 ns	1.8 A 4 A			60 ns
Skyworks Solutions Inc. SI8275BB-IS1R	RF Coupling	4 A	CQC CSA UR VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	16-SOIC	125 °C	-40 °C			16-SOIC	13.3 ns	10.5 ns	1.8 A 4 A	0.154 in	3.9 mm	60 ns
Skyworks Solutions Inc. SI8275ISO-KIT																								Board(s)	Board(s)	Si8275	Digital Isolator	Interface

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	490	$ 3.65

Description

General part information

SI8275 Series

4A Gate Driver RF Coupling 2500Vrms 2 Channel 14-LGA (5x5)
