SI8275ISO-KIT

Active

Skyworks Solutions Inc.

SI8275/71 EVAL KIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSI827x Datasheet Datasheet

SI8275ISO-KIT

Active

Skyworks Solutions Inc.

SI8275/71 EVAL KIT

Deep-Dive with AI

DocumentsSI827x Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI8275ISO-KIT

Contents	Board(s)
Function	Digital Isolator
Supplied Contents	Board(s)
Type	Interface
Utilized IC / Part	Si8275

SI8275 Series

Part	Technology	Current - Peak Output	Approval Agency	Number of Channels [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Pulse Width Distortion (Max) [Max]	Mounting Type	Voltage - Isolation	Common Mode Transient Immunity (Min) [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output High, Low	Package / Case [x]	Package / Case [y]	Propagation Delay tpLH / tpHL (Max)	Number of Channels	Contents	Supplied Contents	Utilized IC / Part	Function	Type
Skyworks Solutions Inc. SI8275AB-IM1	RF Coupling	4 A	CQC CSA UR VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	200 V/ns	14-VDFN	125 °C	-40 °C	75 ns	75 ns	14-QFN (5x5)	13.3 ns	10.5 ns	1.8 A 4 A
Skyworks Solutions Inc. SI8275DBD-IS1R	RF Coupling	4 A	CQC CSA UL VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	200 V/ns	16-SOIC	125 °C	-40 °C	75 ns	75 ns	16-SOIC	13.3 ns	10.5 ns	1.8 A 4 A	0.154 in	3.9 mm
Skyworks Solutions Inc. SI8275ABD-IM	RF Coupling	4 A	CQC CSA UR VDE	2	4.6 V	30 V	8 ns	Surface Mount	2500 Vrms	200 V/ns	14-VFLGA	125 °C	-40 °C	75 ns	75 ns	14-LGA (5x5)	13.3 ns	10.5 ns	1.8 A 4 A
Skyworks Solutions Inc. SI8275AB-IMR	RF Coupling	4 A	CQC CSA UR VDE	2	4.6 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	14-VFLGA	125 °C	-40 °C			14-LGA (5x5)	13.3 ns	10.5 ns	1.8 A 4 A			60 ns
Skyworks Solutions Inc. SI8275AB-IM	RF Coupling	4 A	CQC CSA UR VDE	2	4.6 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	14-VFLGA	125 °C	-40 °C			14-LGA (5x5)	13.3 ns	10.5 ns	1.8 A 4 A			60 ns
Skyworks Solutions Inc. SI8275DB-IS1	RF Coupling	4 A	CQC CSA UR VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	16-SOIC	125 °C	-40 °C			16-SOIC	13.3 ns	10.5 ns	1.8 A 4 A	0.154 in	3.9 mm	60 ns
Skyworks Solutions Inc. SI8275GA-IM1	RF Coupling	4 A	CQC CSA UL VDE		4.2 V	30 V	8 ns	Surface Mount	1000 VAC	200 V/ns	14-VDFN	125 °C	-40 °C	75 ns	75 ns	14-QFN (5x5)	13.3 ns	10.5 ns	1.8 A 4 A				1
Skyworks Solutions Inc. SI8275DA-IM1	RF Coupling	4 A	CQC CSA UL VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	14-VDFN	125 °C	-40 °C			14-QFN (5x5)	13.3 ns	10.5 ns	1.8 A 4 A			60 ns
Skyworks Solutions Inc. SI8275BB-IS1R	RF Coupling	4 A	CQC CSA UR VDE	2	4.2 V	30 V	8 ns	Surface Mount	2500 Vrms	150 kV/µs	16-SOIC	125 °C	-40 °C			16-SOIC	13.3 ns	10.5 ns	1.8 A 4 A	0.154 in	3.9 mm	60 ns
Skyworks Solutions Inc. SI8275ISO-KIT																								Board(s)	Board(s)	Si8275	Digital Isolator	Interface

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.27

Description

General part information

SI8275 Series

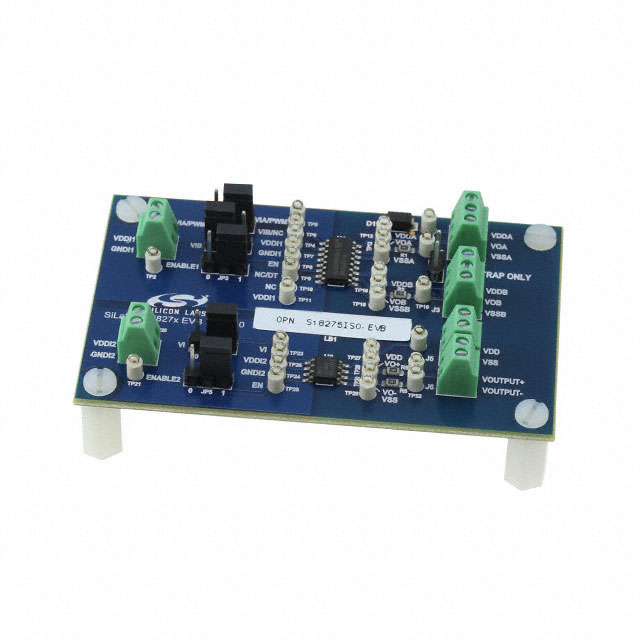

Si8275 Digital Isolator Interface Evaluation Board

Documents

Technical documentation and resources

SI827x Datasheet

Datasheet
