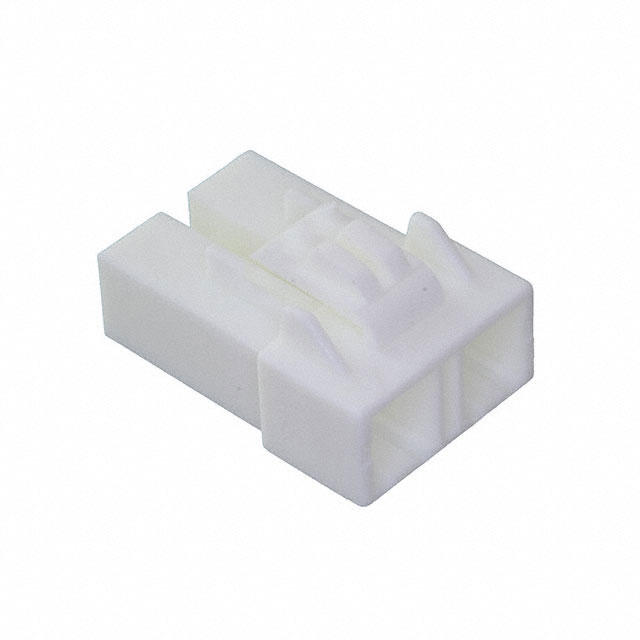

DF22B-2S-7.92C

Active

Hirose Electric USA, Inc.

CONNECTOR HOUSING, RCPT, 2POS, 7.92MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONNECTOR HOUSING, RCPT, 2POS, 7.92MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Insulation Material	Note	Number of Rows	Color	Features	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Pitch [x]	Pitch [x]	Contact Termination	Mounting Type	Number of Positions
Hirose Electric USA, Inc. DF22B-5S-7.92C	Receptacle	Nylon Polyamide (PA)	Contacts Not Included	1	White	Polarizing Key	Latch Lock	85 °C	-55 °C	Female Socket	7.92 mm	0.312 in	Crimp	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF22B-3S-7.92C	Receptacle	Nylon Polyamide (PA)	Contacts Not Included	1	White	Polarizing Key	Latch Lock	85 °C	-55 °C	Female Socket	7.92 mm	0.312 in	Crimp	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF22B-2S-7.92C	Receptacle	Nylon Polyamide (PA)	Contacts Not Included	1	White	Polarizing Key	Latch Lock	85 °C	-55 °C	Female Socket	7.92 mm	0.312 in	Crimp	Free Hanging (In-Line)	2
Hirose Electric USA, Inc. DF22B-4DS-7.92C	Socket	Nylon Polyamide (PA)	Contacts Not Included	2	White		Latch Lock	85 °C	-55 °C	Female Socket	7.92 mm	0.312 in	Crimp	Free Hanging (In-Line)	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle White 0.312" (7.92mm)
